The Videx VX2300 system is the latest digital system of the range which holds all the know how and expertise the company has gained in the field.

Thanks to the common bus, made of two non-polarized wires only, it is possible to carry out installations with one or more entrances on the same floor, or with main and secondary entrances on different floors (up to maximum of 16 outdoor stations).

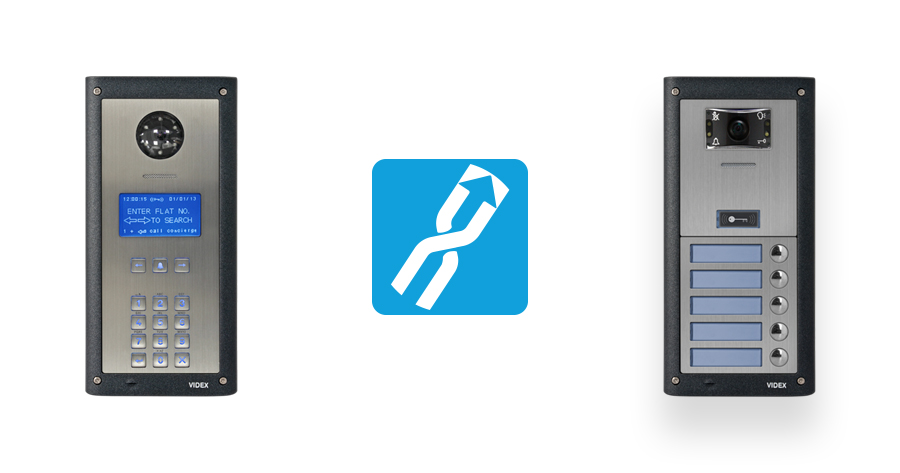

The outdoor stations specific for this system are those from the 4000 Series; this range includes both traditional speaker units with inbuilt functional to digital (for installations up to 64 users) and digital panels (suitable for systems with more than 64 users).

Traditional speaker unit modules with functional to digital allow to connect traditional call buttons (max 64) to the digital system, while digital panels, although they are the same size as two module, can handle up to 100 apartments / 250 users.

Digital panels are available for  video systems only. They allow a compact outdoor station (2 modules) and can also work as an access control device (each apartment may have a unique code for “door open”).  Other features include instructions on how to use the system via an internal speech board (a voice guidance helps you with the operation), or on display messages.

Programming of the digital panel can be done through their keypad and through a PC (using programming software and cable).

Indoor units can be selected from a large range of audio and videophones, with the range always expanding and updating.

A complete range of accessories are available such as: Bus relay 2305 (used as a service relay used to obtain up to 8 additional services or as extension sounder trigger by connecting external sounders for calls), Bus amplifier 2315 (to extend the range covered by the installation by amplifying the bus line), entrance switcher 2301N (combine up to 4 entrances, or up to 8 by using 2 devices, Block exchange module 2306 (allows an installation with main and secondary entrances).
