The Portal Plus is a networkable access control system with Windows based programming and management software with support for up to 15000 users and unlimited entrances. It allows greater flexibility in the design and installation of an access control system having a modular design and facilities for proximity, bio access and coded access readers. A range of readers are available including an industry standard panel mount reader for integration into door entry systems.

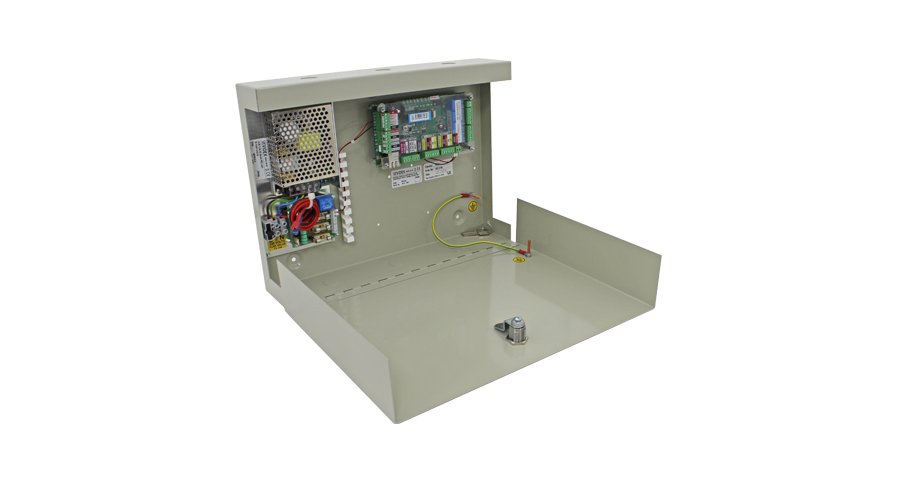

Based on 2 door controllers (available with or without integral 3.5A switched mode power supply) and including an RS485 bus that will link up-to 20 doors (10 controllers) up to 1km. Additionally, an optional integral Ethernet connection (TCP/IP) is available allowing controllers to be connected to an existing LAN or WAN with the potential expansion to unlimited doors and unlimited distances. The integration of door monitoring, push to exit button inputs, free inputs, free outputs and 16 status LED’s all help make this a simple to install yet extremely flexible system.

The system also benefits from distributed intelligence, allowing the systems to continue functioning even during times of network problems. Both anti pass back and mantrap options are available as standard as are free inputs and outputs that can be programmed as per an installation or user requirement.
