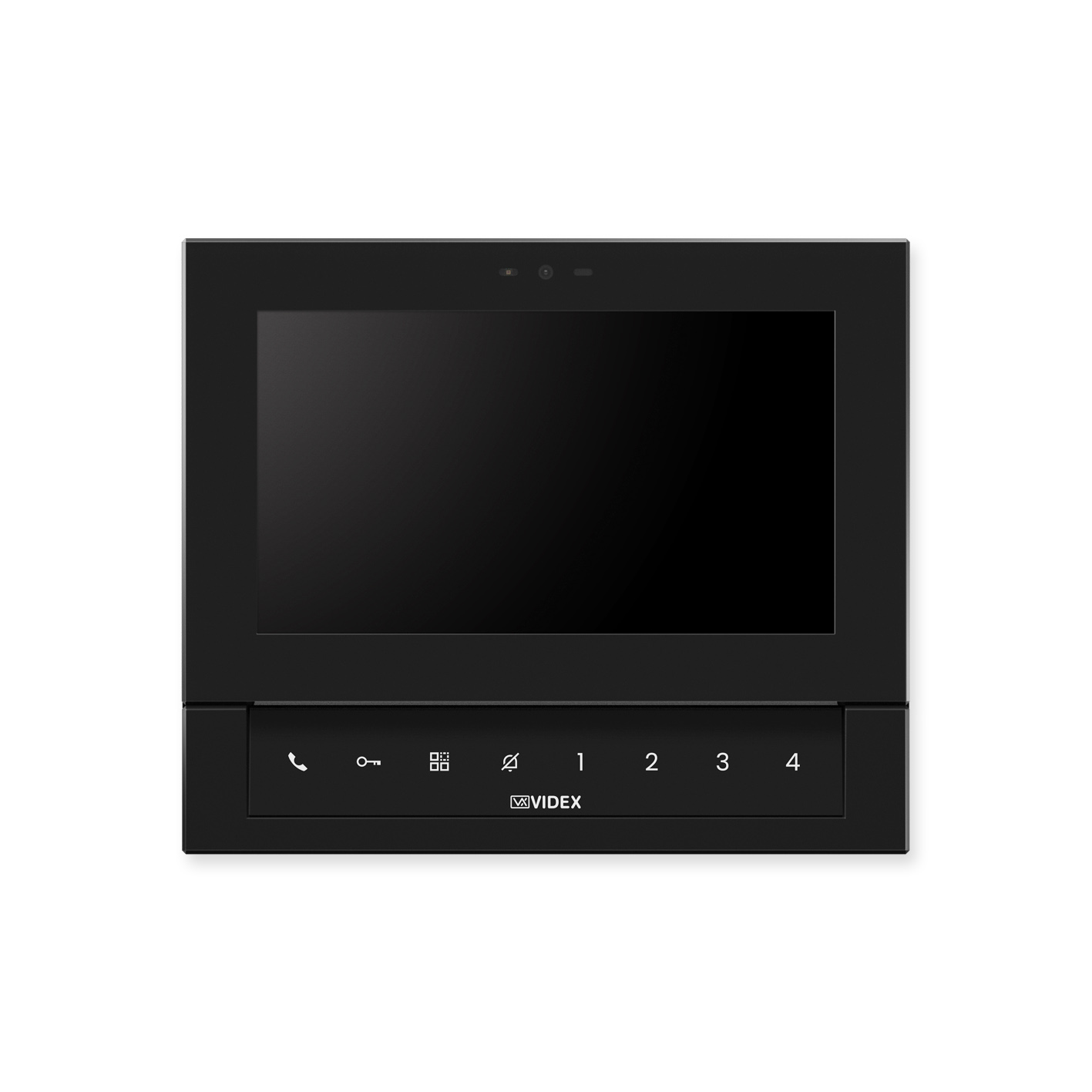

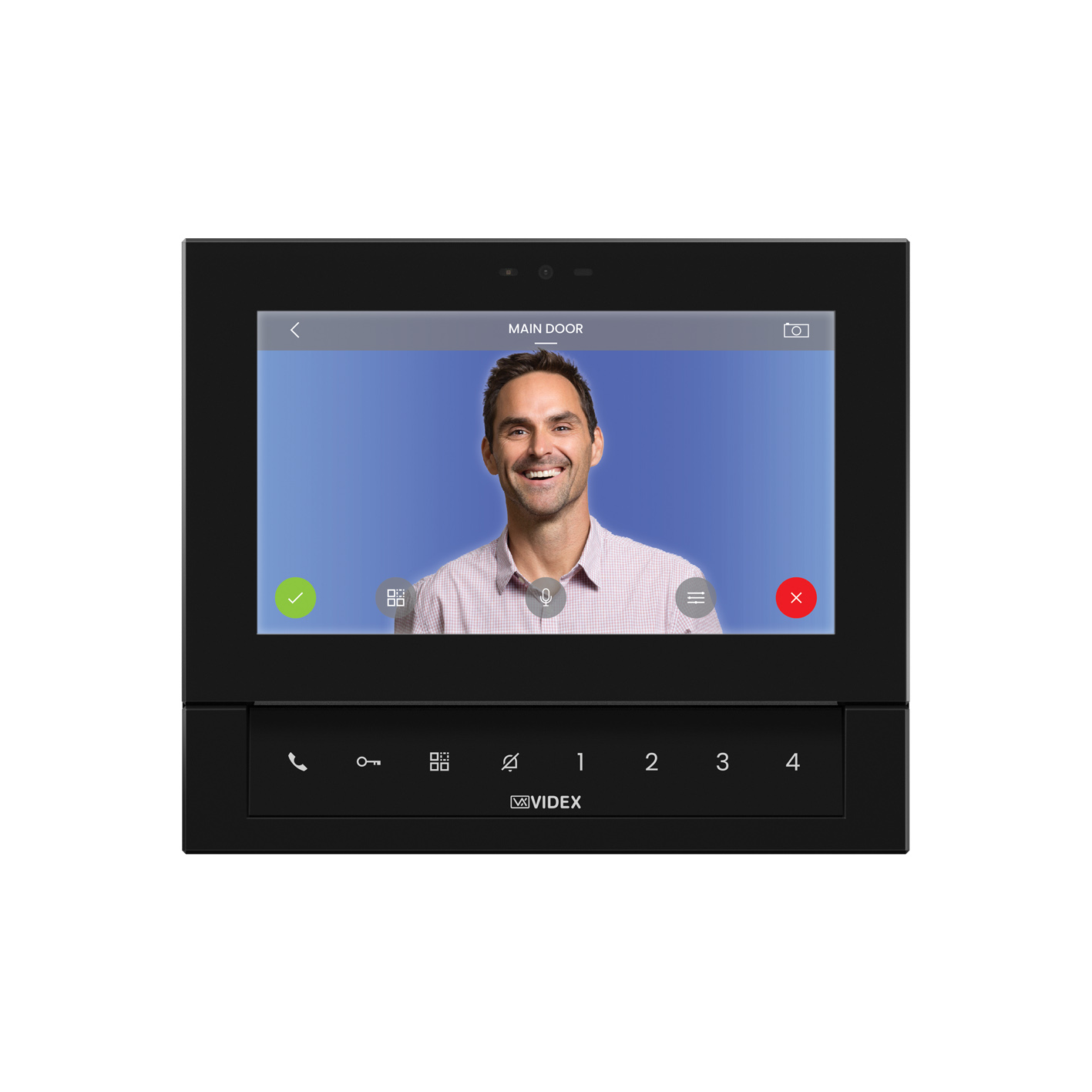

Klass KL7VXIP Series Monitor (IPure System)

The latest colour video intercom offering from Videx is the Klass KL7VXIP series monitors for the IPure system. A super stylish video intercom that is completely integratable with third party systems.

An elegant and inspiring design featuring a 7″ hi-res (1024×600 pixel) TFT full touch capacitive screen with an ultra-slim 3mm tempered glass finish. The Klass KL7VXIP series monitors can be used as a handsfree device or with a traditional handset attachment (using the KLHSW handset attachment with the KL7VXIPW or the KLHSB handset attachment with the KL7VXIPB).

The video intercom includes 8 soft-touch buttons that can be configured with various functions including conversation/auto power on, door opener, intercom call, video camera/privacy service switching, etc. using the Videx IP Wizard software or dedicated to preset functions. Other features include display contrast and brightness controls, call volume adjustments and smart chronothermostat function that can be managed locally or through the Videx CloudNected App. It can be powered by either 12Vdc directly using UTP cable or by using the RJ45 ethernet connection with PoE switch technology.

They can be wall mounted (surface) or desk mounted using a desktop kit (KLHFTS without the handset attachment or KLHSTS with the handset attachment). The Klass series monitor is available in a white (KL7VXIPW) or black (KL7VXIPB) finish.

Features

  • Manufactured from ABS impact resistant plastics with ultra-slim 3mm tempered glass finish
  • 7" hi-res colour TFT full touch capacitive screen with OSD menus
  • 1024x600 pixel resolution display
  • Compatible with SIP 2.0, RTSP and HTTP protocols
  • Embedded Linux operating system
  • 8 soft-touch buttons that can be configured or dedicated to preset functions
  • Up to 16 IP video streams with picture in picture function
  • Built-in sensors for integration with third party systems
  • Smart chronothermostat function that can be managed locally or through the Videx CloudNected App
  • Video intercommunication facility
  • 2 active low inputs and 2 programmable relay outputs
  • 12Vdc powered or PoE switch
  • Desk mountable using desktop kit
  • All programmable functions can be programmed using the Videx IP Wizard software or OSD touch screen menus
  • Induction coil for the hearing aid users
  • Video calls with high resolution camera
  • Handset options available
Find a distributor
  • System: IPure system
  • Material: White or black ABS plastics (depending on model) with 3mm thick tempered glass finish
  • Induction coil: Yes, for hearing aid users
  • Operating system: Linux OS
  • Connection method: LAN, private network or public network (internet)
  • Screen/resolution: Hi-res colour 7″ hi-res colour TFT full touch capacitive screen with OSD menus, 1024×600 pixel resolution
  • Power suply: 12Vdc powered (via UTP cable) or PoE switch technology
  • Inputs: 2 active low inputs
  • Outputs: 2 programmable relay outputs
  • CCTV compatibility: Yes, IP based with RTSP
  • Video streaming: Up to 16 IP video streams with picture in picture function
  • Built-in sensors: Proximity sensor, ambient light sensor and integrated temperature & humidity sensors (smart chronothermostat)
  • Built-in camera: Yes (hi-res up to 1080p colour camera) for video intercommunication
  • Intercommunication facility: Yes, including video intercommunication calls
  • Configuration: Programming and setup via IP Wizard software or OSD touch screen menus
  • Compatible protocols: SIP 2.0 (VOIP), RTSP and HTTP (API)
  • Dimensions (mm): 195 (W) x 165 (L) x 30 (D) – without handset, 237 (W) x 165 (L) x 30 (D) – with handset
  • Mounting: Surface mount (directly to the wall) or desk mount using the appropriate desktop kit
  • Finishes: White or black

Klass video intercoms:

  • KL7VXIPW – Surface mount, Klass series IP system colour video monitor with hi-res 7″ TFT touch screen (white finish)
  • KL7VXIPB – Surface mount, Klass series IP system colour video monitor with hi-res 7″ TFT touch screen (black finish)

Klass video accessories:

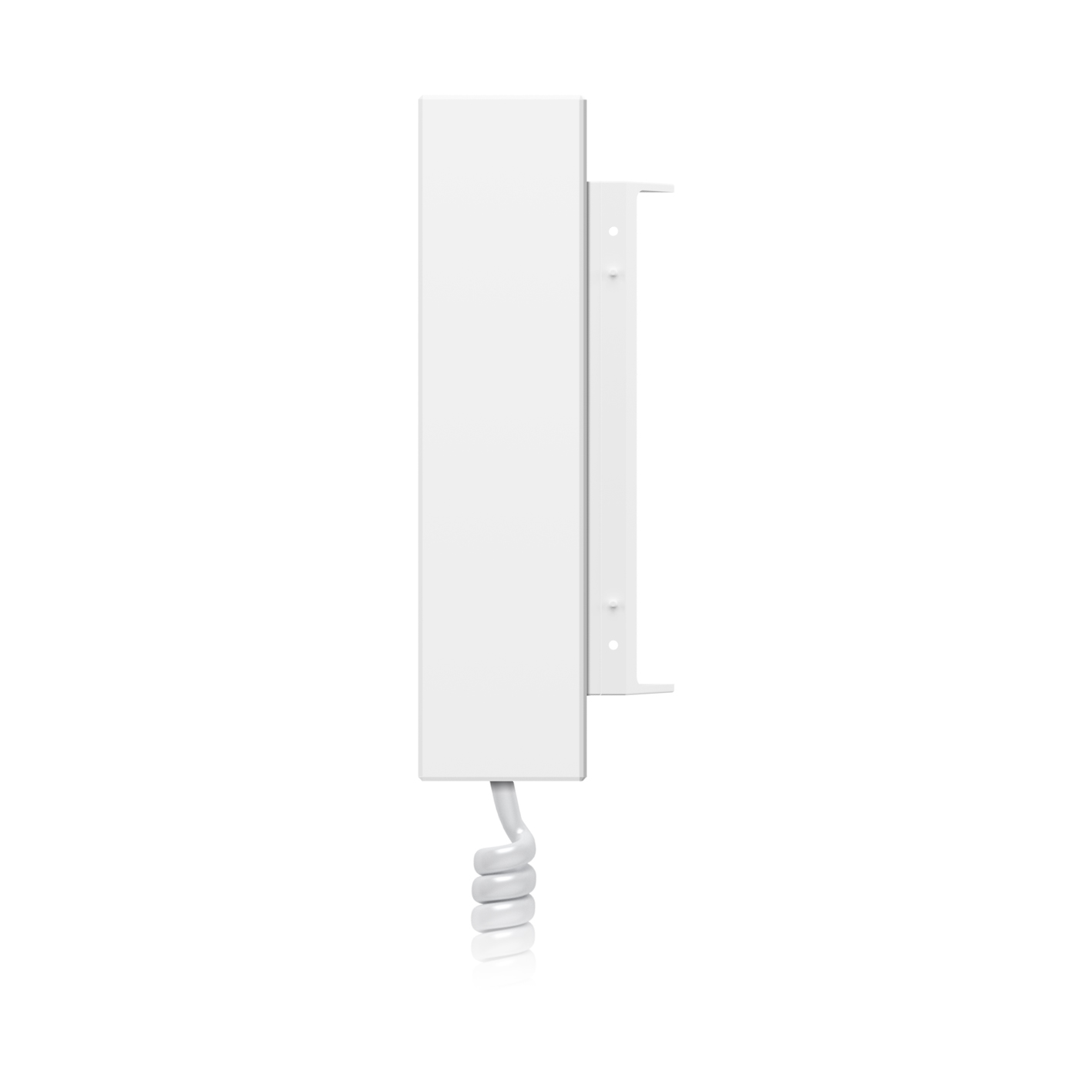

  • KLHSW – Klass series handset with magnetic cradle and cord (white finish)
  • KLHSB – Klass series handset with magnetic cradle and cord (black finish)

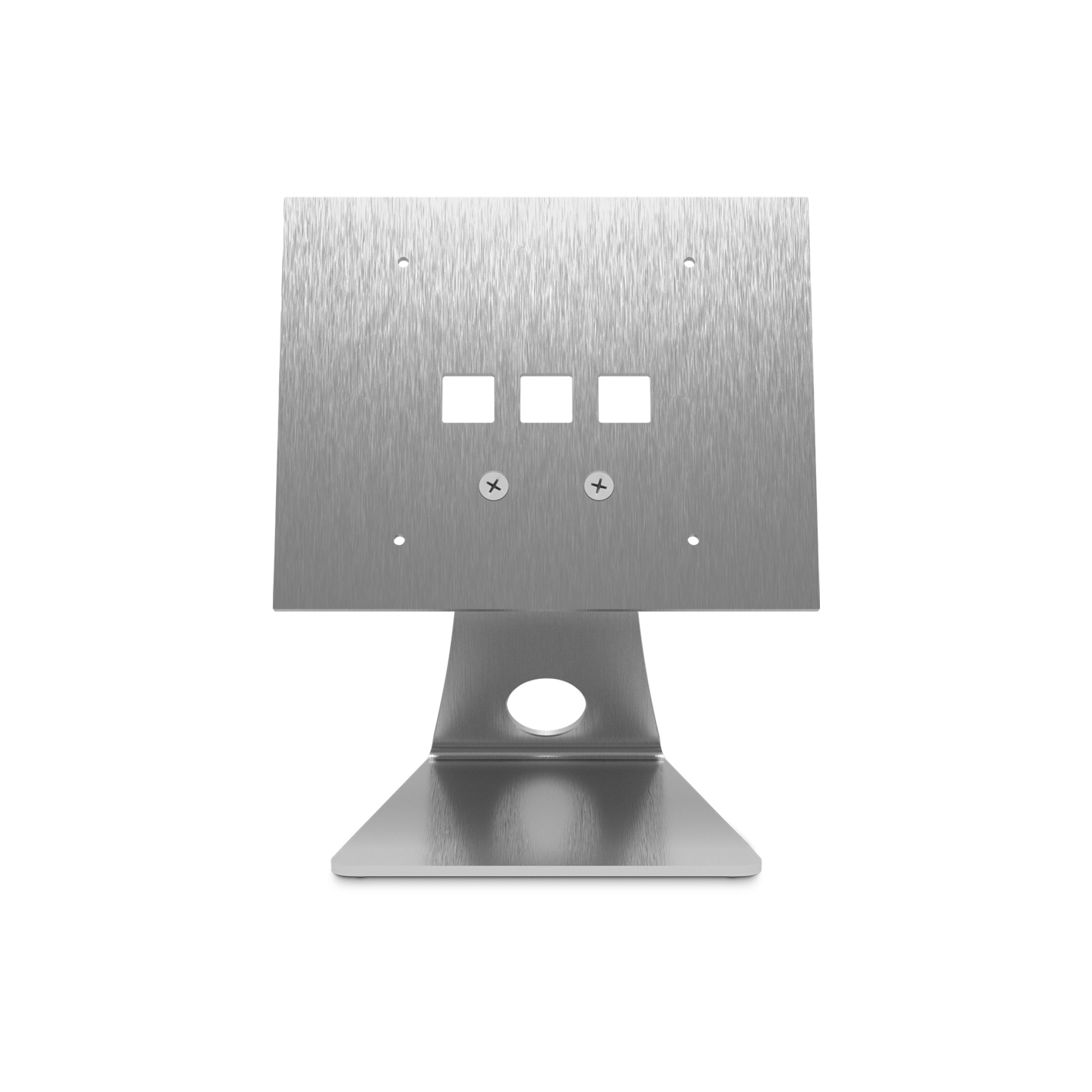

  • KLHFTS – Klass series desktop kit (for Klass video intercom without handset attachment)
  • KLHSTS – Klass series desktop kit (for Klass video intercom with handset attachment)
  • DNGL – Wi-Fi dongle for local Wi-Fi network connectivity
