VX2200 Audio Control Cabinets

The 2291A series audio cabinets have been designed to house the main control equipment commonly used in VX2200 audio systems. The cabinets serve as a central point where the common VX2200 databus (L/-) and power supply connections (+/-) cable back to for an installation.

1 door and 4 door cabinets are available with the cabinet enclosure manufactured from powder coated steel (lockable). The cabinets are fitted with an unboxed 13.8Vdc power supply with battery back-up facility (3.5A for the 1 door cabinets and a 5A for the 4 door cabinets) and either a 1 door or a 4 door audio switching card and with or without a 701T (BST/GMT) timeclock.

The cabinets can also be supplied with or without apartment isolation. Cabinets with apartment isolation will be fitted with 2204N isolation cards from a 4 way, 8 way up to 12 way isolation.

The 2291A-2206N cabinet will come fitted with the 2206N bus exchange device for two level systems.

Features

  • Control equipment housed in either a CAB1 or CAB2 lockable powder coated steel cabinet
  • Cabinets fitted with a 13.8Vdc, 3.5A or a 13.8Vdc, 5A PSU with battery back-up facility
  • Cabinets with or without an 701T (BST/GMT) timeclock
  • Cabinets include either a 1 entrance or 4 entrance audio switching card
  • Apartment isolation available: 4 way, 8 way or 12 way isolation cards
  • Block control cabinet fitted with a 2206N bus exchange device
Find a distributor

Unboxed 13.8Vdc, 3.5A PSU:

  • Input Voltage: 230Vac @ 50/60Hz +6% -10%
  • Output Voltage: 3x 13.8Vdc outputs
  • Current (fuse): 1x 1A and 2x 1.25A (3.5A max.)
  • Battery back-up facility: Yes
  • PSU Dimensions (mm): 100 (W) x 200 (L) x 36 (D)

Unboxed 13.8Vdc, 5A PSU:

  • Input Voltage: 230Vac @ 50/60Hz +6% -10%
  • Output Voltage: 3x 13.8Vdc outputs
  • Current (fuse): 1x 1A and 2x 2A (5A max.)
  • Battery back-up facility: Yes
  • PSU Dimensions (mm): 100 (W) x 235 (L) x 40 (D)

701T (BST/GMT) timeclock:

  • Voltage input: 12Vdc
  • Time zones: 6
  • Relay: 3A dry contact (CO, NO, NC)
  • Display: 2 line, 16 character LCD

VX123-1 (1 door switching card):

  • Common databus input/output: +12, GND, L, -, BSY, TRD, V1, V2, +20
  • Door inputs: 1 door input – +12, GND, L, -, BSY, TRD, SL, V1, V2

VX123-A (4 door switching card):

  • Common databus input/output: +12, GND, L, -, BSY, TRD
  • Door inputs: 4 door inputs – +12, GND, L, -, BSY, TRD

2204N isolation card:

  • Common databus input/output: -, +12, -, L, D, S1
  • Isolated outputs: 4 outputs – S1, D, 12V, L, –

2206N bus/block exchange device (audio/video):

  • Input Voltage: 12Vdc
  • Databus connections: local bus (LB, -), main bus (MB, -) and bus out (BO, -)
  • Video input/output: local video in (V/V1L, V2L), main video through (2x V/V1, 2x V/V2), video out (V/V1O, V2O), amplified video (V/V1P, V2P)
  • 2291A-1D – 1 door audio control cabinet (13.8Vdc, 3.5A PSU, 701T, VX123-1)
  • 2291A-1D/NTC – 1 door audio control cabinet (13.8Vdc, 3.5A PSU, VX123-1)
  • 2291A – 4 door audio control cabinet (13.8Vdc, 5A PSU, 701T, VX123-A)
  • 2291A/NTC – 4 door audio control cabinet (13.8Vdc, 5A PSU, VX123-A)

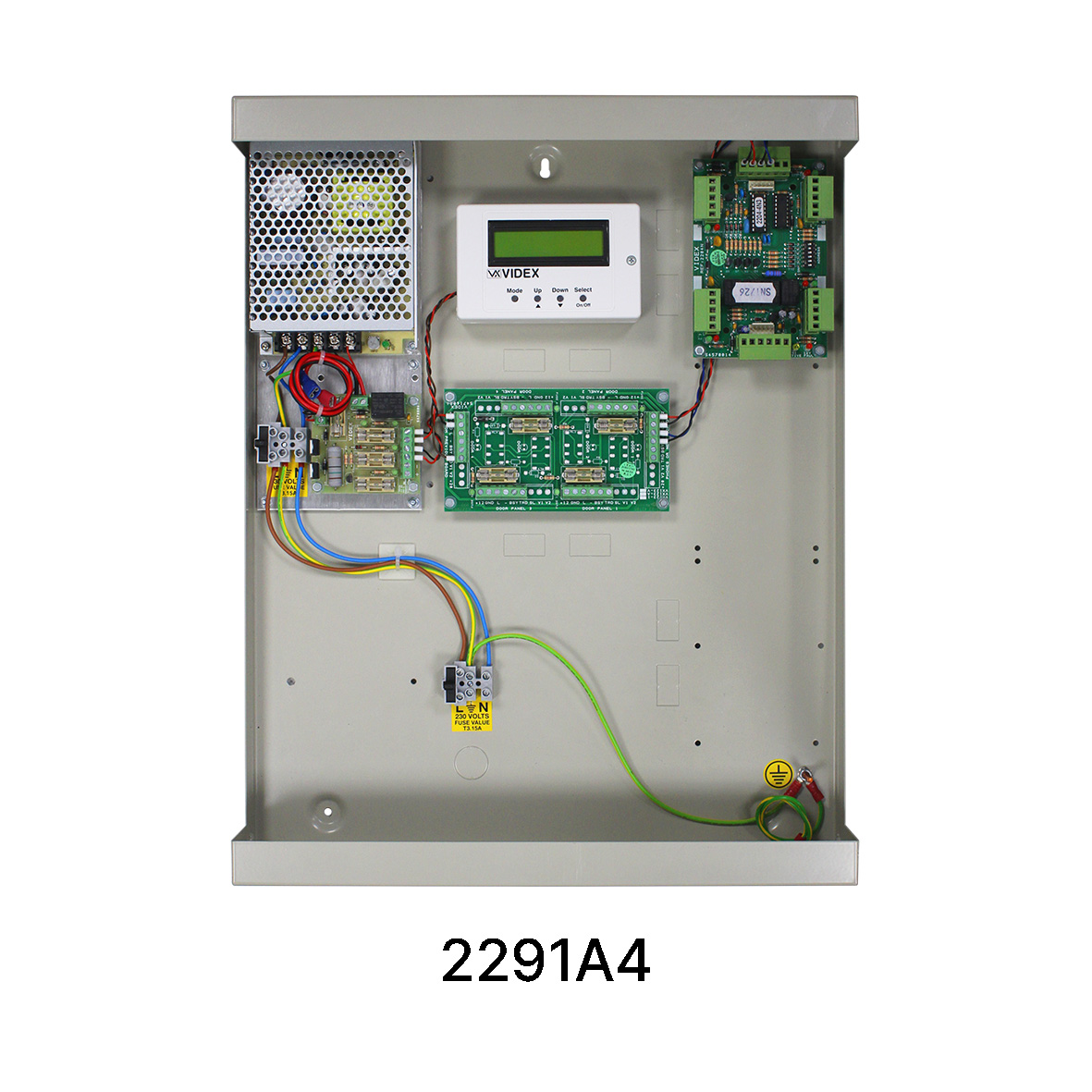

  • 2291A4 – 4 door audio control cabinet (13.8Vdc, 5A PSU, VX123-A and 1x 2204N isolation card)
  • 2291A8 – 4 door audio control cabinet (13.8Vdc, 5A PSU, VX123-A and 2x 2204N isolation cards)
  • 2291A12 – 4 door audio control cabinet (13.8Vdc, 5A PSU, VX123-A and 3x 2204N isolation cards)
  • 2291A-2206N – 4 door audio control cabinet (13.8Vdc, 5A PSU, VX123-A and 2206N bus exchange device)
