VR4K Button Modules with Nameplate

The VR4KNP series of modules include a back lit nameplate window with each call button. Like the VR4K series button modules they can be used in conjunction with the audio and video modules to achieve the required number of call buttons for a system.

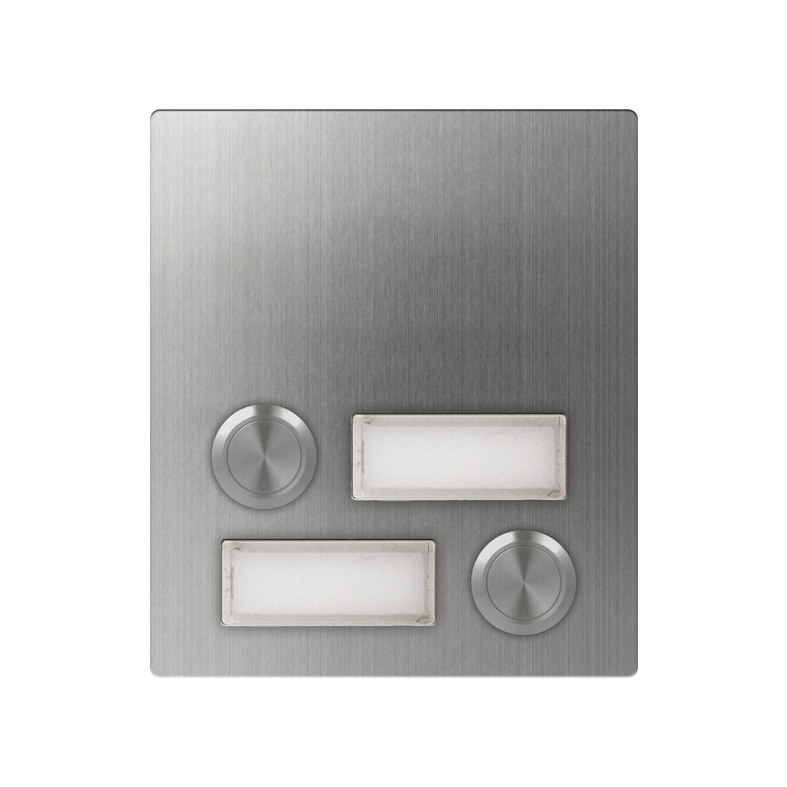

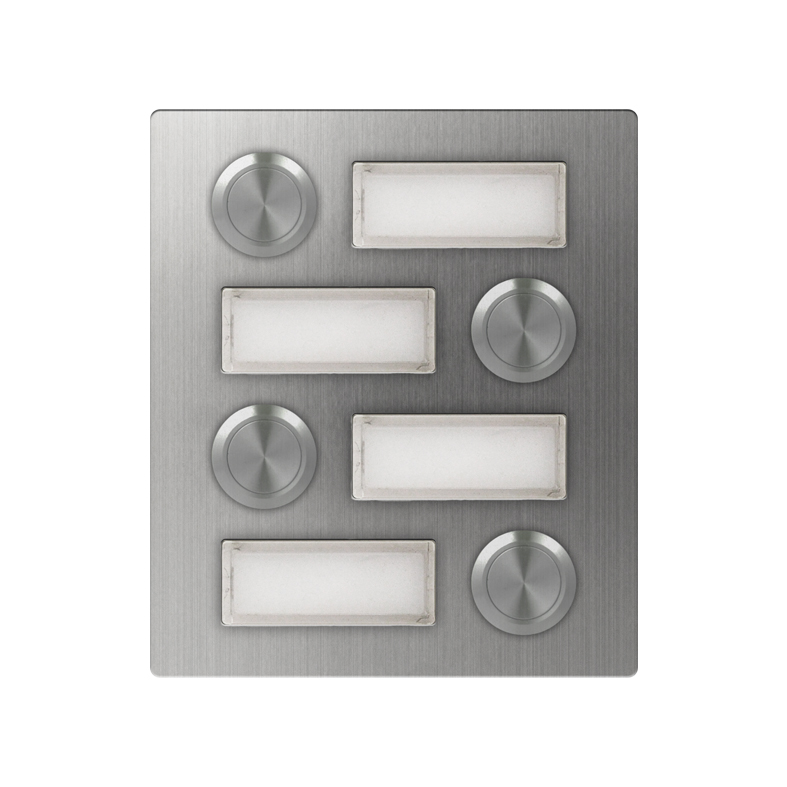

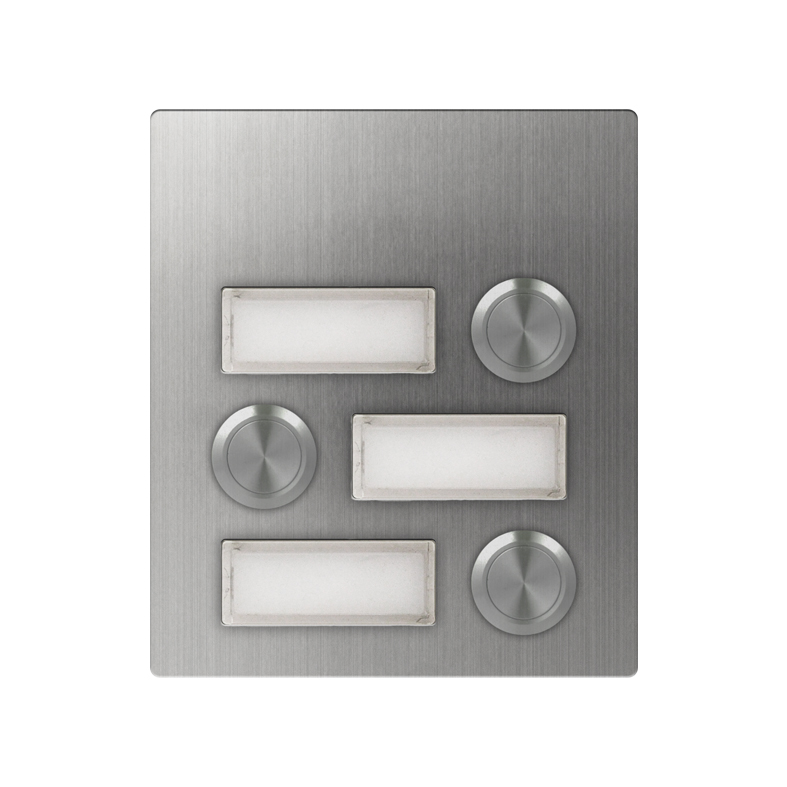

Three button module variations are available from 2 buttons up to to 4 buttons with each button having two connection terminals and a nameplate window.

Each nameplate window is manufactured from clear polycarbonate where the nameplate card insert can be changed from the inside only, thereby offering a high resistance to vandalism.

Like the rest of the VR4K series modules the button modules are manufactured from 12 gauge, 316 grade vertically brushed stainless steel and are compatible with the full range of 4000 series surface and flush back boxes.

An option for high contrasting yellow bezel buttons are also available.

Features

• 12 gauge, 316 grade brushed stainless steel fascia
• IK09 impact protect and IP55 ingress protection ratings
• Nameplate inserts changed from inside only
• Nameplate window LED illumination
• 4 button modules up to 9 button modules available
• Buttons available with high contrast yellow bezel
