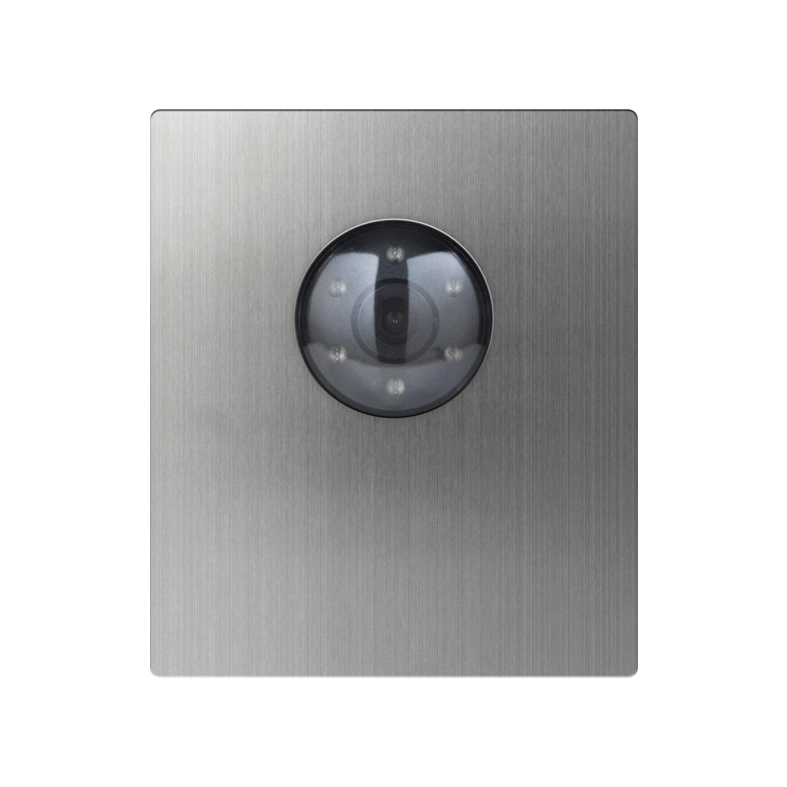

VR4K Camera Module
Vandal resistant 4000 series colour camera module, VR4KCMC, which incorporates a high quality CMOS colour camera with 6 white light illumination LEDs, also featuring a camera field of view: 80° vertical viewing angle and a 170° horizontal viewing angle.
The VR4KCMC can be used in video door entry systems: traditional video systems combined with a VR4KAM audio speaker module, VX2200 video systems combined with a VR4KAM2W audio speaker module or the VR4K series 1 or 2 button videokits combined with a VR4KAMK audio speaker module.
The camera can be set for composite video signal (coax cable) or for balanced video (twisted pair cable).
Features
- 12 gauge, 316 grade brushed stainless steel fascia
- IK07 impact protect and IP65 ingress protection rating
- High quality CMOS colour camera
- Wide viewing angle: 80° vertical and 170° horizontal
- 6 bright white LED illumination
- Camera resolution: 976x496 pixel, PAL - 700TV line
- Balanced video signal (V1/V2) or coax video signal (V/M)
- Camera: High quality CMOS colour camera
- Camera field of view: 80° vertical viewing angle and a 170° horizontal viewing angle
- Camera resolution: 976×496 pixel, PAL – 700TV line
- LEDs: 6 bright white LED illumination
- LED illumination distance: up to 50cm (max.)
- Module material: 12 gauge, 316 grade vertically brushed stainless steel front fascia
- Module protections: IK09 impact protection, IP55 ingress protection
- Module compatibility: Can be used with the following VR4K audio speaker modules – VR4KAM, VR4KAMK and VR4KAM2W modules
- Working voltage: 12Vdc or 20Vdc
- Current rating: 100mA (max.)
- Video output: Balanced video (non-coax) V1/V2 or coax video (V/M) – selectable
- Module dimensions (mm): 103 (W) x 120 (L) x 48 (D)

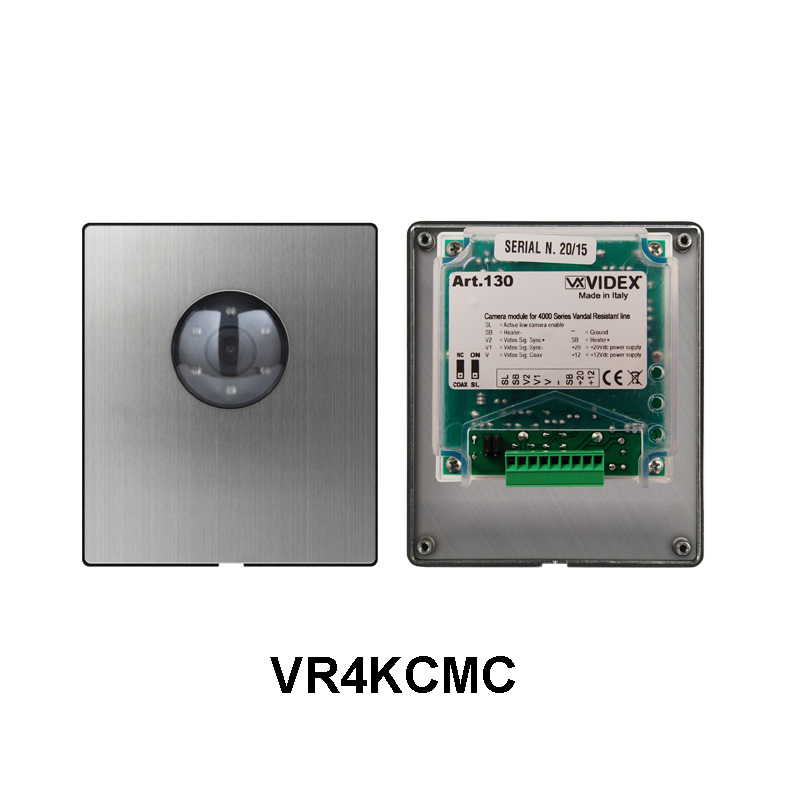

- VR4KCMC – Vandal resistant 4000 series CMOS colour camera module with bright white LED illumination
