VR4K Audio Kits with Coded Access
Vandal Resistant 4000 Series modular “4+1” audio entry kits incorporating two way speech, electronic call tone and lock release facility.

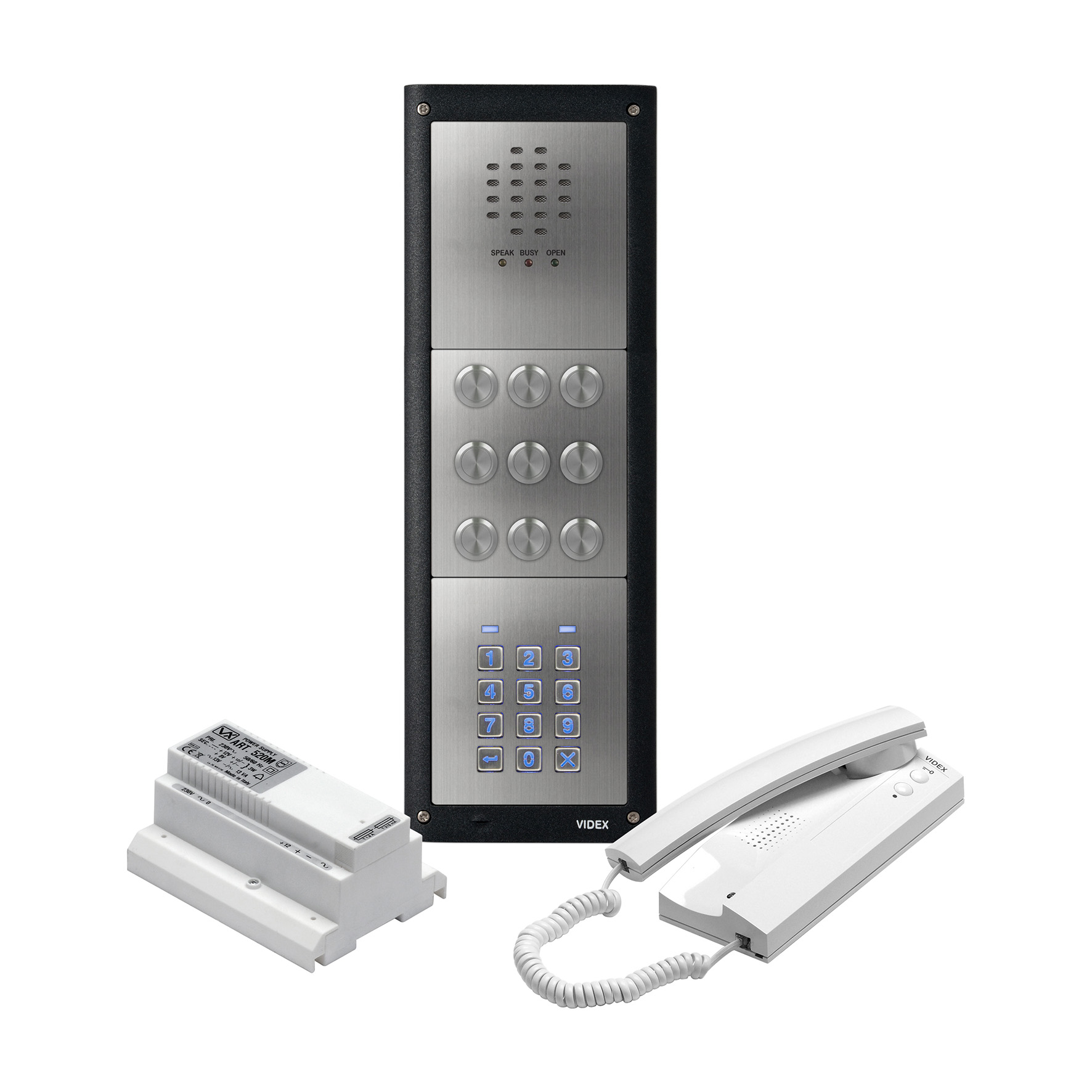

The entry panel is available surface or flush with kits ranging from 1 button up to 12 call buttons. The entry panel consists of a VR4KAM (136 speaker) with either 0, 1, 2 or 3 buttons and the appropriate VR4K series button module (VR4KBM-4, VR4KBM-5, VR4KBM-6, VR4KBM-7, VR4KBM-8 or VR4KBM-9) depending on the audio kit required. The VR4KAM (136 speaker) has DDA compliant call progress LED’s: speak, busy and door open as well as call reassurance tones.
The kits include the appropriate number of 3111 audiophones (e.g. a 3 button kit will include three 3111 audiophones and so on), they also include a 520M ac/dc PSU and the appropriate size 4000 series surface or flush back box.
The audio kits include a VR4901 series, 3 code, 3 relay codelock module (one code per relay) with blue backlit keypad buttons to assist the partially sighted.
The Vandal Resistant panel fascia is 316 grade vertically brushed stainless steel while the frame is made from die cast alloy finished in gun metal grey.
Features
- 1-12 button audio kit panel options available
- Surface or flush mount door panel options
- DDA compliant call progress LEDs (speak, busy and door open)
- Call progress reassurance tones
- Programmable door open time
- Push to exit input
- 2 button 3000 series audiophones (3111)
- Up to 3 audiophones per call button
- 3 code, 3 relay codelock with timed (01-99 seconds) or latching (00) output
- Number of entrances: 1
- No. of cores to audiophone: 5
- Recommended cable type: CW1308
- Maximum No. of audiophones per call button: 3
- Lock output: Dry contact relay (C/NO/NC)
- Audiophone model : 3111 (2 button with 3 level call tone volume)
- PSU model: 520M (8 – 12Vdc, 13Vac)
- Amplifier module: VR4KAM (136, “4+1” speaker)
- Button modules: VR4KBM-4, VR4KBM-5, VR4KBM-6, VR4KBM-7, VR4KBM-8 or VR4KBM-9
- Codelock module: VR4901, 3 code, 3 relay keypad
Flush kits
- VR4K-1/CL – 1 way, Vandal Resistant 4000 series audio kit with codelock, flush
- VR4K-2/CL – 2 way, Vandal Resistant 4000 series audio kit with codelock, flush
- VR4K-3/CL – 3 way, Vandal Resistant 4000 series audio kit with codelock, flush
- VR4K-4/CL – 4 way, Vandal Resistant 4000 series audio kit with codelockt, flush
- VR4K-5/CL – 5 way, Vandal Resistant 4000 series audio kit with codelock, flush
- VR4K-6/CL – 6 way, Vandal Resistant 4000 series audio kit with codelockt, flush
- VR4K-7/CL – 7 way, Vandal Resistant 4000 series audio kit with codelockt, flush
- VR4K-8/CL – 8 way, Vandal Resistant 4000 series audio kit with codelock, flush
- VR4K-9/CL – 9 way, Vandal Resistant 4000 series audio kit with codelock, flush
- VR4K-10/CL – 10 way, Vandal Resistant 4000 series audio kit with codelock, flush
- VR4K-11/CL – 11 way, Vandal Resistant 4000 series audio kit with codelock, flush
- VR4K-12/CL – 12 way, Vandal Resistant 4000 series audio kit with codelock, flush
Surface kits
- VR4K-1S/CL – 1 way, Vandal Resistant 4000 series audio kit with codelock, surface
- VR4K-2S/CL – 2 way, Vandal Resistant 4000 series audio kit with codelock, surface
- VR4K-3S/CL – 3 way, Vandal Resistant 4000 series audio kit with codelock, surface
- VR4K-4S/CL – 4 way, Vandal Resistant 4000 series audio kit with codelockt, surface
- VR4K-5S/CL – 5 way, Vandal Resistant 4000 series audio kit with codelock, surface
- VR4K-6S/CL – 6 way, Vandal Resistant 4000 series audio kit with codelockt, surface
- VR4K-7S/CL – 7 way, Vandal Resistant 4000 series audio kit with codelockt, surface
- VR4K-8S/CL – 8 way, Vandal Resistant 4000 series audio kit with codelock, surface
- VR4K-9S/CL – 9 way, Vandal Resistant 4000 series audio kit with codelock, surface
- VR4K-10S/CL – 10 way, Vandal Resistant 4000 series audio kit with codelock, surface
- VR4K-11S/CL – 11 way, Vandal Resistant 4000 series audio kit with codelock, surface
- VR4K-12S/CL – 12 way, Vandal Resistant 4000 series audio kit with codelock, surface
