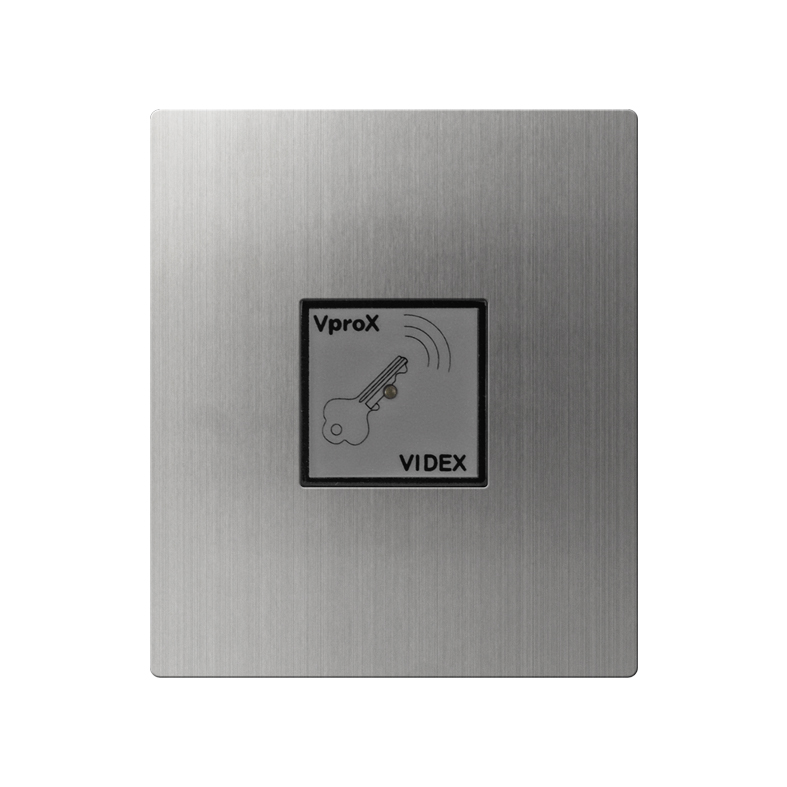

VR4K Proximity Reader Module (VProx)
The VR4KVPM is an EM (4002/4100, 125kHz) proximity reader for use with the full range of VIDEX VProx access control CPUs: VP20, VP100, VP250, VP1000, VP4000 and 1000A expansion reader module.
It includes a tri-colour LED: green for accept/access granted, red for access denied and amber when idle, providing the user with clear indication of the status of the reader.
Like the rest of the VR4K series modules the VR4KVPM is manufactured from 12 gauge, 316 grade vertically brushed stainless steel and is compatible with the full range of 4000 series surface and flush back boxes.
Features
- 12 gauge, 316 grade brushed stainless steel fascia
- IK09 impact protect and IP55 ingress protection ratings
- Tri-colour (green, red and amber) status indication LED
- Compatible with the VP20, VP100, VP250, VP1000, VP4000 CPUs and 1000A expansion reader module
- Operating frequency of 125kHz with a read range of up to 5cm
- Compatible with the full range of 4000 series surface and flush back boxes
VR4KVPM:
- Material: 12 gauge, 316 grade vertically brushed stainless steel front fascia
- Compatible Vprox CPUs: VP20, VP100, VP250, VP1000, VP4000 and 1000A reader expansion module
- Status LED: Tri-colour LED (green = accept/access granted, red = access denied, amber = reader idle/standby
- Operating frequency: 125kHz, EM 4002/4100
- Read range: Up to 5cm
- Compatible fobs/cards: 955/T (blue), 955/B (black), 955/R (red), 955/Y (yellow) and 955/G (green), cards include: 955/C (thin ISO card, EM format 125kHz)
- Power input & current: 12Vdc, 80mA (standby), 120mA (during operation)
- Pre-wired cable wires: – (0V/GND grey wire), 12V (12Vdc white wire), RK (data yellow wire), LR (red LED, access denied brown wire) and LG (green LED, access granted green wire)
- Module protections: IK09 impact protection, IP55 ingress protection
- Module dimensions (mm): 103 (W) x 120 (L) x 22 (D)
- VR4KVPM – Vandal resistant 4000 series VProx EM proximity reader module
Fobs & Cards –
- 955/T – Blue, tear drop EM proximity key fob
- 955/B – Black, tear drop EM proximity key fob
- 955/R – Red, tear drop EM proximity key fob
- 955/Y – Yellow, tear drop EM proximity key fob
- 955/G – Green, tear drop EM proximity key fob
- 955/C – White, thin ISO credit card style EM proximity card
