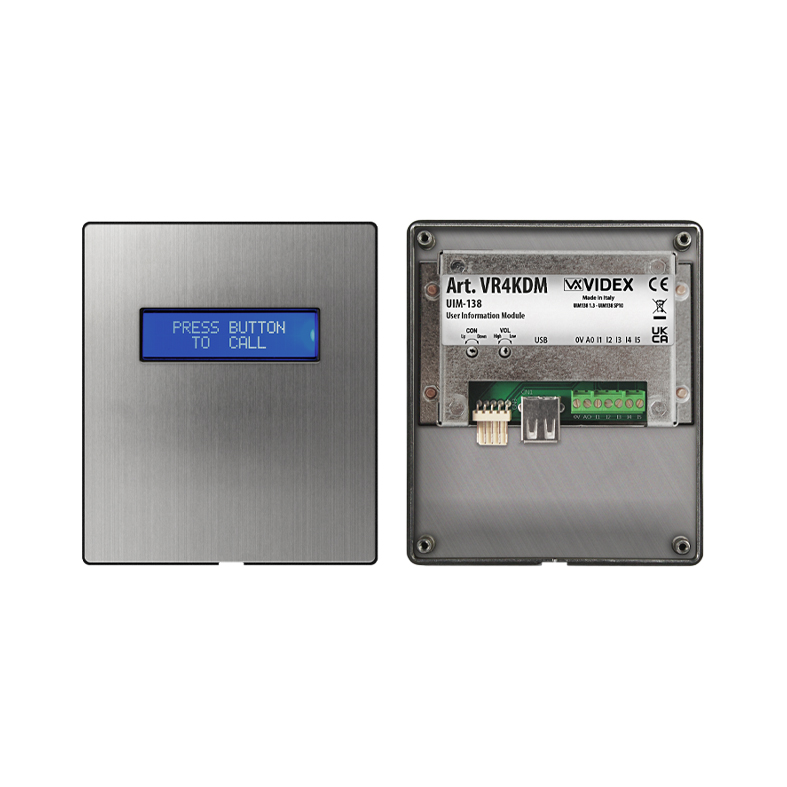

VR4K Display Interface Module (VX2200 and 4G GSM)
The VR4KDM display interface module has been designed to connect to the VR4KAM2W (138 speaker) and the VR4KGSM/4G (150/4G speaker) modules. It enables users with disabilities to make the process of calling a flat or an apartment more user friendly in compliance with the Equality Act 2010 (UK).
It features a blue back-lit 2 line, 16 character LCD screen which is protected behind a 6mm thick lexan window. It displays the call progress information during a call whilst also providing voice assistance messages through the audio speaker that it is connected to, giving the user a clear indication of the status of the call.
The display configuration and programming is carried out using the 2X00PC software (when connected to a PC or laptop via the USB input).
Like other modules in the VR4K series it is compatible with the popular 4000 Series surface and flush back boxes.
Features
- 12 gauge, 316 grade vertically brushed stainless steel fascia
- IK09 impact protect and IP55 ingress protection ratings
- Can interface with the VR4KAM2W (138 speaker) and the VR4KGSM/4G (150/4G speaker) modules
- DDA features include visual call progress information displayed and call progress voice assistance
- Blue back-lit 2 line, 16 character LCD screen
- 5 programmable auxiliary inputs & a programmable auxiliary output
- LCD back light intensity adjustment and voice assistance volume control
- Compatible with the full range of 4000 series surface and flush back boxes
- Systems: VX2200 and GSM systems
- Material: 12 gauge, 316 grade vertically brushed stainless steel front fascia
- Module protections: IK09 impact protection, IP55 ingress protection
- DDA compliant: DDA compliant in accordance with the Equality Act 2010 (UK)
- Display: blue back-lit 2 line, 16 character LCD screen
- Display controls: CON adjustment POT for back light screen intensity, VOL control POT for voice assistance volume level
- USB input: Standard USB port used for display configuration/programming via the 2X00PC software
- Compatible modules: VR4KAM2W (138 speaker) and VR4KGSM/4G (150/4G speaker)
- Power input: 12Vdc (supplied by 138 or 150/4G speaker module)
- Current rating: Standby – 30mA, during operation – 35 – 40mA (approx.)
- Module dimensions (mm): 103 (W) x 120 (L) x 34 (D)
- VR4KDM – Vandal resistant 4000 series display interface module for the VX2200 and GSM systems
