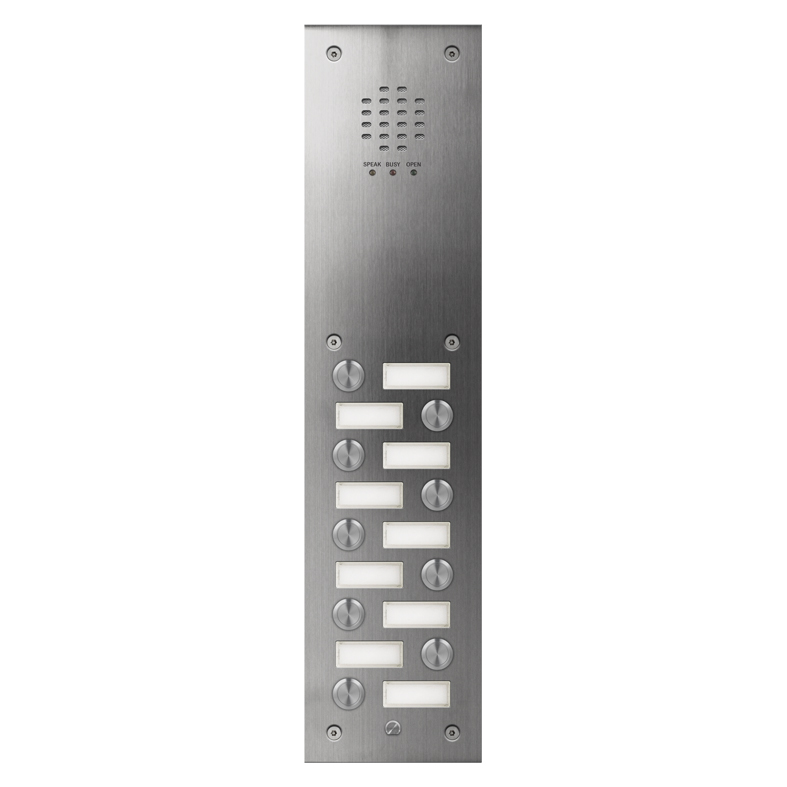

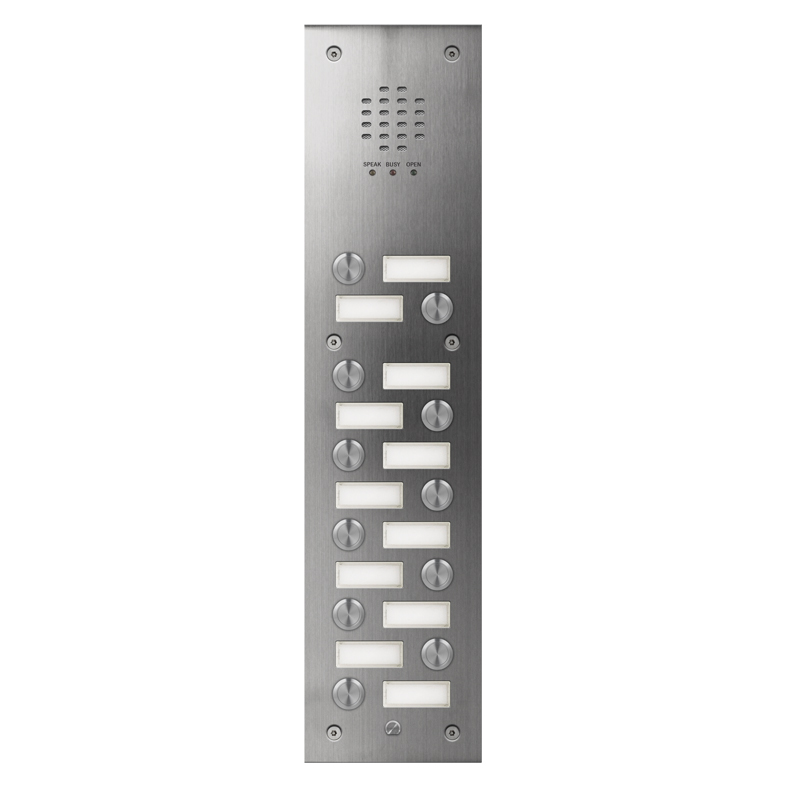

VR120 Series Audio Panels with Nameplate

The VR120 series entry panels are all 120mm wide and have DDA compliant call progress LEDs: speak (yellow), busy (red) and open (green) and also feature audio reassurance tones to assist the visitor during the call process. The panels are manufactured from 12 gauge, 316 grade vertically brushed stainless steel, with an IK10 rating and IP55 rating. The panels include IP68 rated VXSSB vandal resistant call buttons. Panels are available from 1 button up to 12 button panels and feature and nameplate window for every call button.

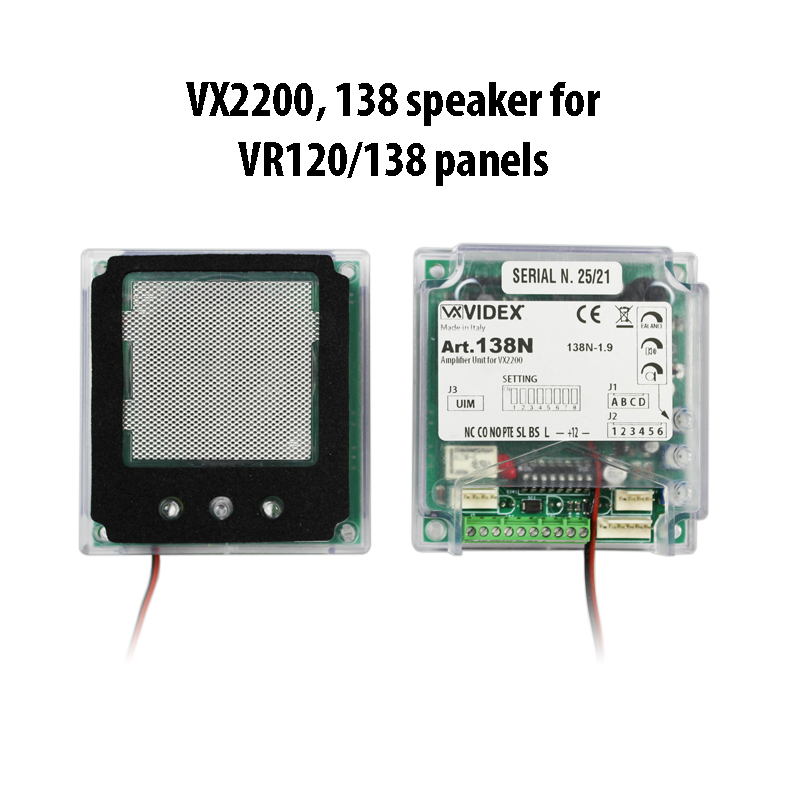

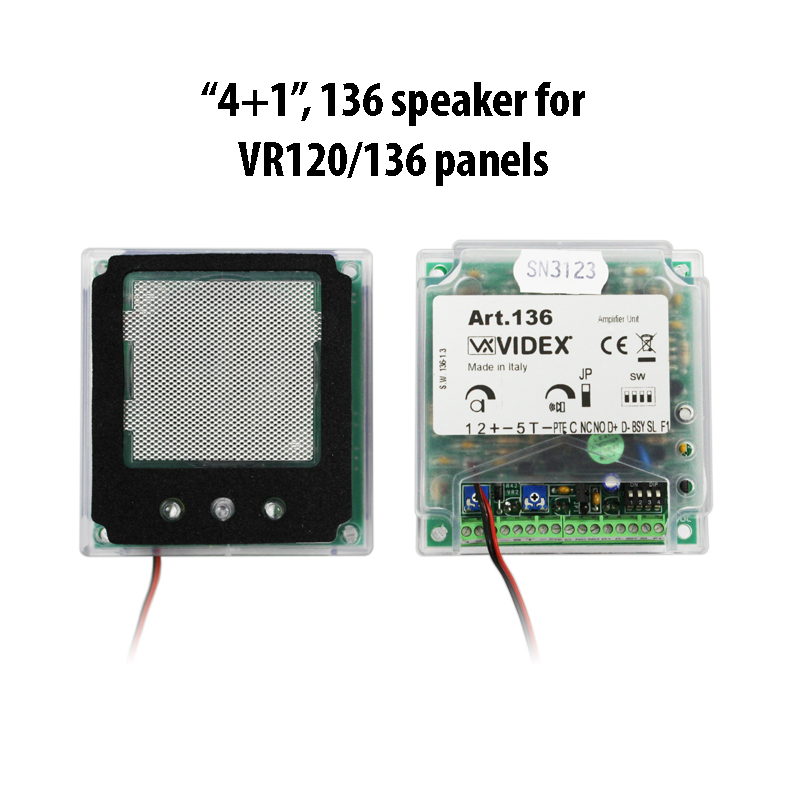

The VR120 panels are fitted with either the traditional “4+1” audio 136 speaker or fitted with the VX2200 audio 138 speaker depending on the system requirements. They are also fitted with a neoprene gasket seal to prevent the ingress of dust and liquid. The panels are attached to their flush back box with 4 or 6 M5 counter sunk torx-pin security screws, depending on panel size.

Additional features include speech time, lock release time adjustments, speaker and microphone volume controls. The panels are deep engraved with 6mm in-filled black characters to identify each button. Optional powder coated panel colours for specific applications can be specified along with custom logos, contact Videx sales for more information.

The appropriate size flush box is supplied with the VR120 series panel as standard. Stainless steel bezel flush boxes and surface boxes with rainshield are also available across the full range.

Features

• 120mm wide, 12 gauge, 316 grade vertically brushed stainless steel panels
• IK10 impact protection and IP55 ingress protection
• Panels fitted with "4+1" audio 136 speaker or fitted with VX2200 audio 138 speaker
• IP68 rated VXSSB buttons with nameplate window
• Call progress LEDs: speak (yellow), busy (red) and open (green)
• Call progress reassurance tones
• Dry contact lock output
• Timed call, speech and lock release
• Speaker and microphone volume adjustments
