4000 Series Speaker Module (IPure System)

The 4505X series IPure audio module features four DDA compliant call progress LED’s: busy, call in progress, speak (communication open) and door open with voice assistance and acoustic signals to guide the visitor through the call process.

They also incorporate an NFC/MiFare proximity reader (ISO IEC 14443A) with a capacity for up to 10,000 proximity fobs/cards (fobs: 955MF/T or ISO3 cards: 955MF/C) which are programmable via a PC using the IPure Wizard software. The built-in NFC/MiFare reader is also compatible with the VIDEX virtual fob app which is available to download from Google Play (for Android devices).

The audio modules can be powered locally by 12Vdc or PoE (802.3af, class 0 – 12.95W). Other features include 2 programmable relay outputs with optional capacitor discharge function, 2 programmable inputs and an RS485 bus for networking with other VIDEX RS485 devices including: 2813 remote relay, 2815 Wiegand interface, 4903 series codelock and the latest XPROX-VX series of proximity readers. The module setup and configuration is also carried out (via a PC) through the IPure Wizard PC software.

The audio modules are available with 0, 1 or 2 buttons, however when connected to 4000 series button expansion modules via the IDC connector can have up to 42 buttons on the system. Each button has blue backlit name plate windows. They are available in a matt 316 marine grade stainless steel finish (suffix/M) or a “gun metal” grey finish (suffix/BL). The module is also compatible with the full range of 4000 series surface and flush back boxes and rainshields.

Features

  • Compatible with the full range of 4000 series surface and flush back boxes and rainshields
  • Matt 316 marine grade stainless steel (/M) or "gun metal" grey (/BL) front plate finishes available
  • Blue backlit name plate windows
  • DDA compliant call progress LED's, voice assistance and acoustic signals
  • Contains speaker and fly lead microphone (microphone easily fits within a 4000 series frame)
  • Built-in NFC/MiFare proximity access reader for up to 10,000 user fobs/cards (programmable via PC based IP Wizard)
  • G.711 µ-law, A-law, G729 audio codec
  • Compatible with SIP 2.0 (UDP), 802.1x, RTP and HTTP
  • FTTH (Fibre to the Home) compatible
  • Powered by 12Vdc (400mA) or PoE - 802.3af (class 0 - 12.95W)
  • Proximity reader compatible with VIDEX 955MF/T fobs & 955MF/C cards and the VIDEX virtual fob app
Find a distributor
  • System: IPure system
  • Audio codec: G.711 µ-law, A-law, G729
  • Sampling frequency: 8kHz
  • Supported protocols: SIP 2.0 (UDP), 802.1x, RTP and HTTP
  • LAN: 10/100BASE-TX with Auto-MDIX, RJ45
  • Call progress LED indication: Yes, 4x LED’s (call, busy, speak and door open)
  • Name plate illumination: Yes, backlit blue
  • Voice assistance & acoustic signals: Yes
  • Button combinations: 0, 1 and 2 button speaker modules (expandable up to 42 buttons max. using a combination of 4000 series IDC button expansions modules)
  • IDC: Yes, for use with 4000 series IDC button expansions modules with IDC connection
  • Relay outputs: 2 programmable relays (C/NO/NC Max 24Vac/dc 2A) with capacitor discharge feature
  • Built-in proximity reader: NFC/MiFare proximity reader (ISO IEC 14443A) with user capacity up to 10,000 user fobs/cards (all compatible with the 955MF/T fobs & 955MF/C cards, also compatible with the VIDEX virtual fob app)
  • Module setup & programming: Yes, via PC based IP Wizard
  • Power supply: 12Vdc (400mA) or PoE 802.3af (class 0 – 12.95W)
  • Power consumption: standby = 250mA, operating = 380mA
  • Module protections: IK09 impact protection, IP65 ingress protection
  • Module dimensions (mm): 103 (W) x 120 (L) x 32 (D)

4505X modules

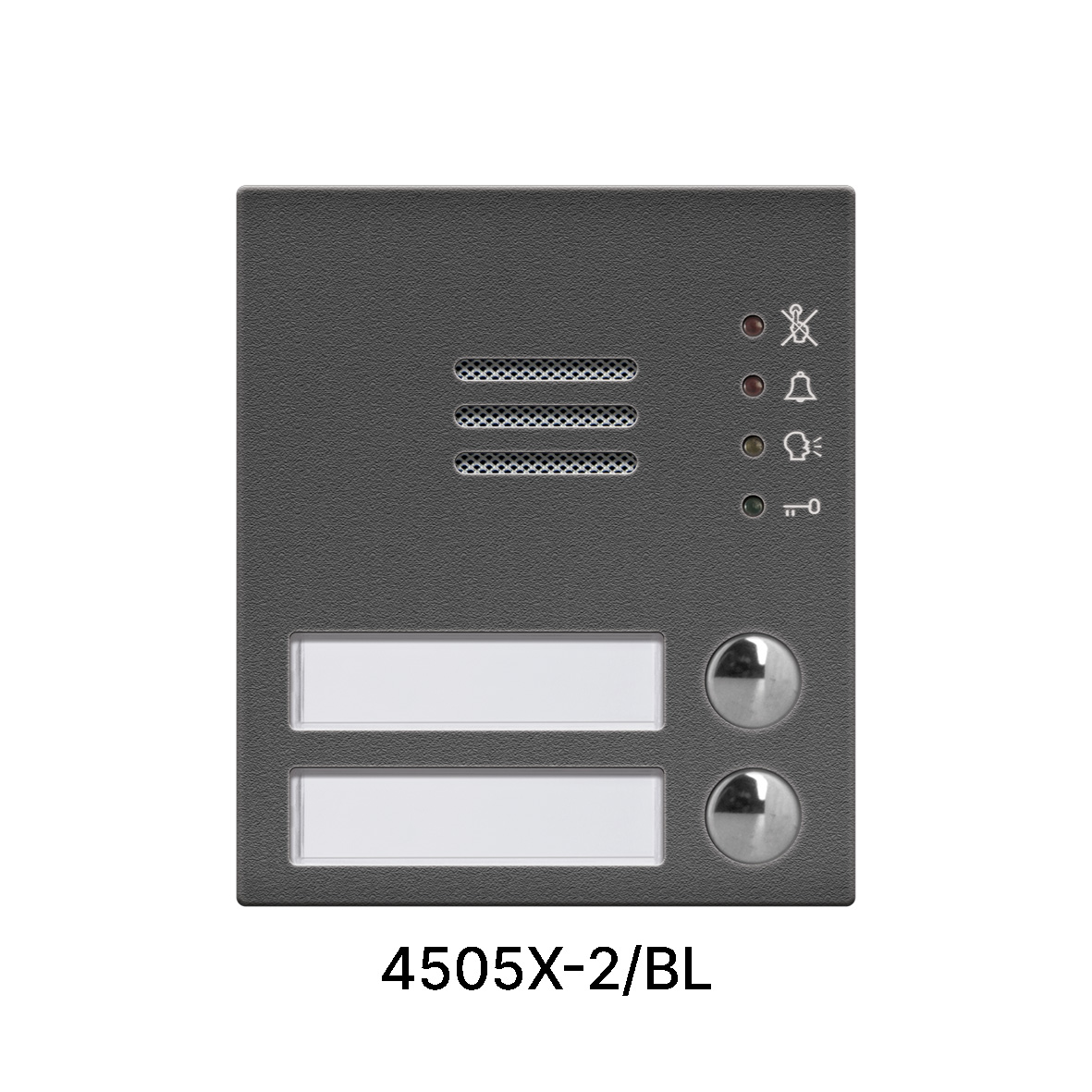

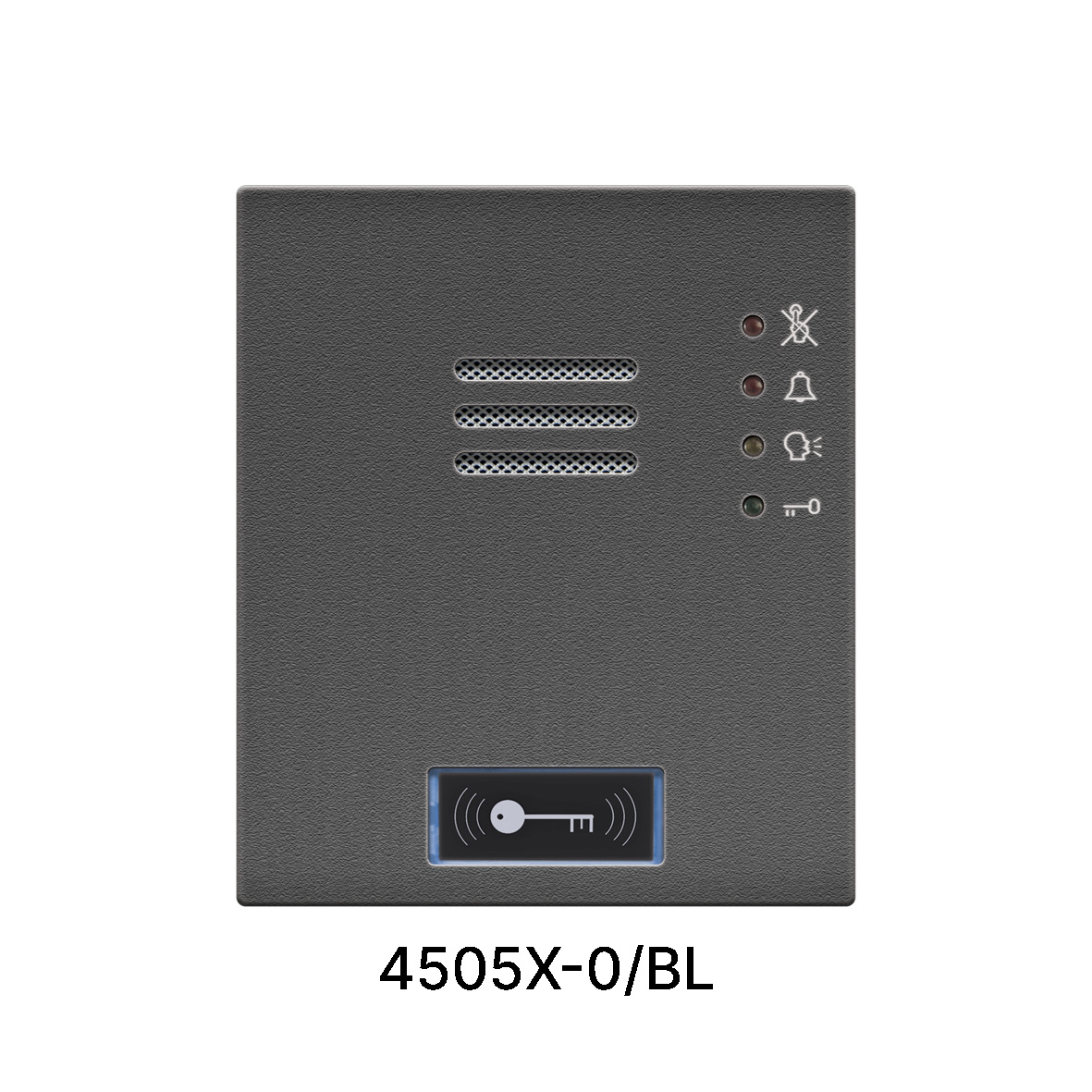

  • 4505X-0/M – 0 button speaker module with proximity (IPure System) – matt 316 marine grade stainless steel
  • 4505X-1/M – 1 button speaker module with proximity (IPure System) – matt 316 marine grade stainless steel
  • 4505X-2/M – 2 button speaker module with proximity (IPure System) – matt 316 marine grade stainless steel
  • 4505X-0/BL – 0 button speaker module with proximity (IPure System) – “gun metal” grey
  • 4505X-1/BL – 1 button speaker module with proximity (IPure System) – “gun metal” grey
  • 4505X-2/BL – 2 button speaker module with proximity (IPure System) – “gun metal” grey

Fobs/cards

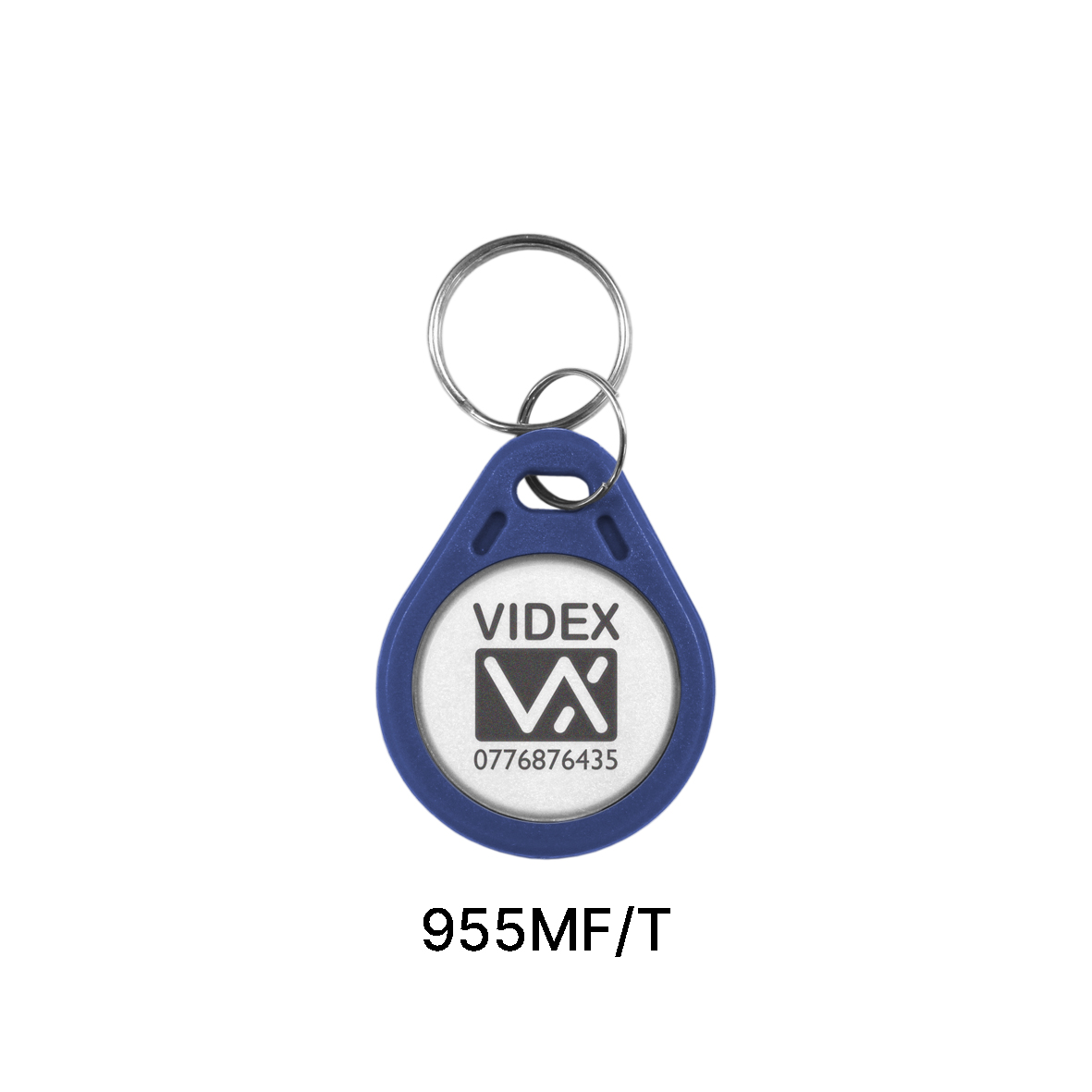

  • 955MF/T – Blue NTAG proximity fob
  • 955MF/C – ISO3 credit card style NTAG proximity card (white)
