VR4K Series Codelock Module (Portal Plus)

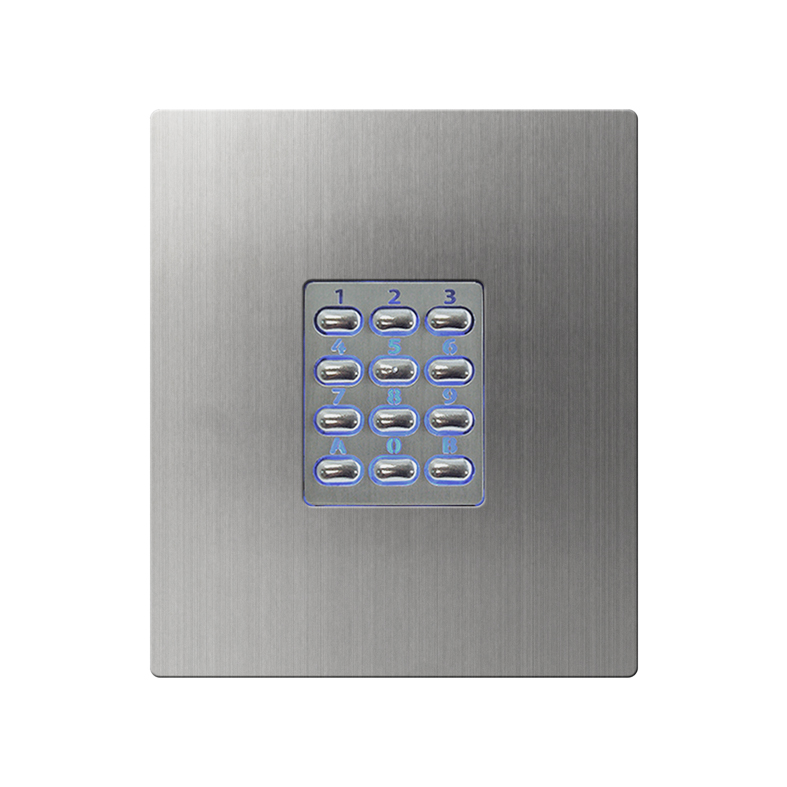

The VR4KPAD series codelock module is a multi-protocol keypad with Wiegand output for the Portal Plus access control system. It features 12 DDA compliant metallic style keypad buttons: 1 – 9, A, 0 and B where each digit is back-lit blue to assist the partially sighted, however they can be disabled if required.
The initial configuration is carried out directly via the keypad with further programming and setup via the PROS CS (Portal Plus) software when the codelock module is connected an EWS/EWSi controller.
Like other modules in the VR4K series it is compatible with the popular 4000 Series surface and flush back boxes.
Features
- 12 gauge, 316 grade vertically brushed stainless steel fascia
- IK09 impact protect and IP55 ingress protection ratings for the front fascia
- Blue backlit keypad buttons to assist the partially sighted
- User friendly programming menu with audible reassurance tones
- 1-8 digit programmable access codes (default 4 digits)
- Compatible with both surface & flush 4000 series back boxes
VR4KPAD –
- System: Portal Plus access control
- Material: 12 gauge, 316 grade vertically brushed stainless steel front fascia
- Module protections: IK09 impact protection, IP55 ingress protection and IP40 ingress protection (keypad)
- Compatible CPUs: Portal Plus EWS/EWSi controller
- Status LEDs: green LED (behind digit 1) = accept/access granted, red LED (behind digit 2) = access denied and amber LED (behind digit 3) = reader idle/standby
- Supported protocols: Wiegand: 26bit (default), 30bit, 34bit and 40bit, Clock/Data and CODIX protocols
- Configuration: Initial keypad configuration is carried out directly via the keypad in programming mode. Addition programming via the PROS CS (Portal Plus) software when the keypad is connected to an EWS/EWSi controller

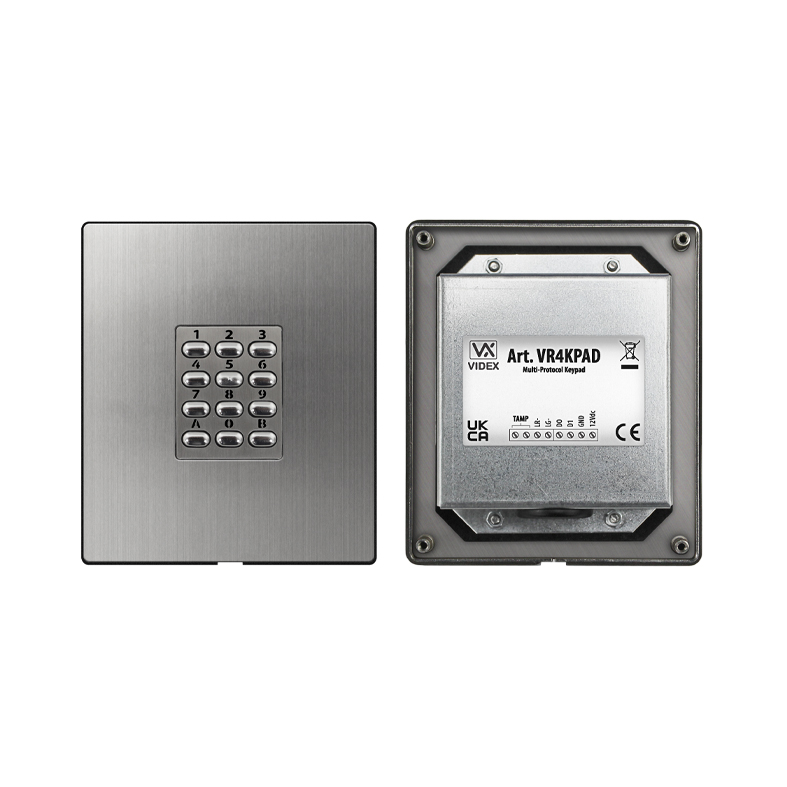

- Tamper protection: 2x anti-tamper inputs
- Code length: 1-8 digits (4 digits default)
- Power/current: 12Vdc, 70mA max (powered directly from EWS/EWSi controller)
- Module dimensions (mm): 103 (W) x 120 (L) x 38 (D)
- VR4KPAD – Vandal resistant 4000 series multi-protocol keypad with Wiegand output for the Portal Plus system
