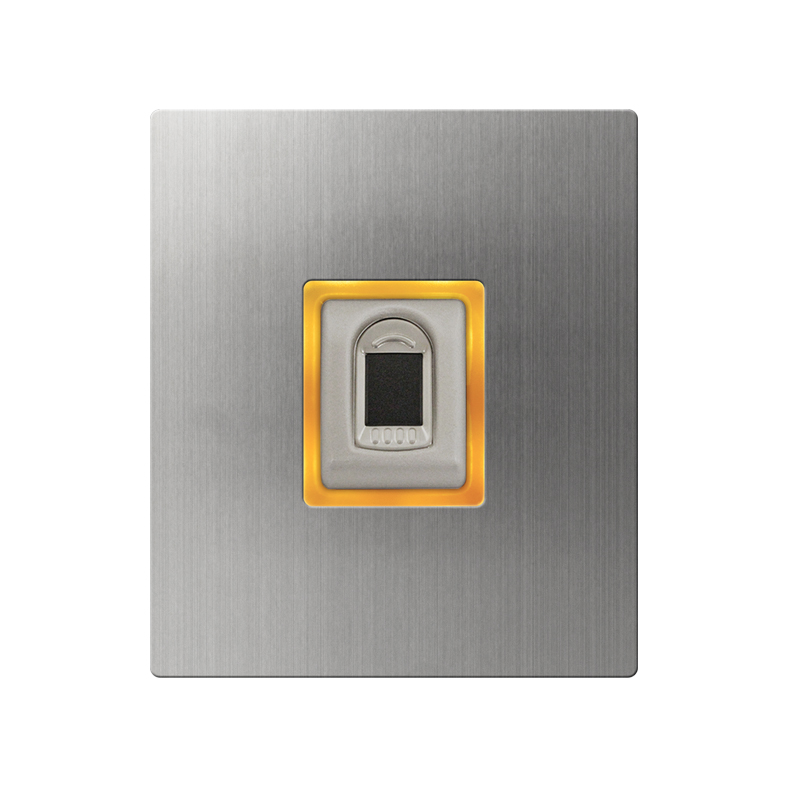

VR4K Series Biometric Fingerprint Module (Portal Plus)
The VR4KBIO module is biometric fingerprint reader designed for access control applications that includes an RS485 bus and Wiegand output for use with the Portal Plus access control system.
It has up to 9500 fingerprint storage capacity with 1 – 10 fingerprints per user. Configuration, additional programming and fingerprint enrolment is carried out either directly via the capacitive fingerprint sensor on the reader module itself or by using the desktop fingerprint reader (BIOPROX-USB) via the PROS CS (Portal Plus) software when the reader is connected to an EWS/EWSi controller.
It also features a tri-colour halo LED: green for accept/access granted, red for access denied and amber when idle/standby providing the user with clear indication of the status of the reader.
Like other modules in the VR4K series it is compatible with the popular 4000 Series surface and flush back boxes.
Features
- 12 gauge, 316 grade vertically brushed stainless steel fascia
- IK09 impact protect and IP55 ingress protection ratings for the front fascia
- IP40 ingress protection for the biometric fingerprint sensor enclosure
- Audible reassurance tones and tri-colour status halo LED (green, red and amber)
- Up to 9500 stored fingerprint capacity with up to 10 fingerprints per user
- Compatible with both surface & flush 4000 series back boxes
VR4KBIO –
- System: Portal Plus access control
- Material: 12 gauge, 316 grade vertically brushed stainless steel front fascia
- Module protections: IK09 impact protection, IP55 ingress protection and IP40 ingress protection (biometric fingerprint enclsoure)
- Compatible CPUs: Portal Plus EWS/EWSi controller
- Tri-colour halo LED: green = accept/access granted, red = access denied and amber = reader idle/standby
- Operating Wiegand protocols: 1 – 128bit, 26bit (default)
- RS485 bus: Yes (A/B), used for fingerprint template transfer and reader configuration
- Configuration & fingerprint enrolment: Configuration and programming is carried out via the PROS CS (Portal Plus) software when connected to an EWS/EWSi controller using a BIOPROX-USB desktop reader or using the VR4KBIO reader itself to enrol fingerprints
- Tamper protection: 2x anti-tamper inputs
- Power/current: 9-14Vdc, 100mA max (powered directly from EWS/EWSi controller)
- Module dimensions (mm): 103 (W) x 120 (L) x 38 (D)

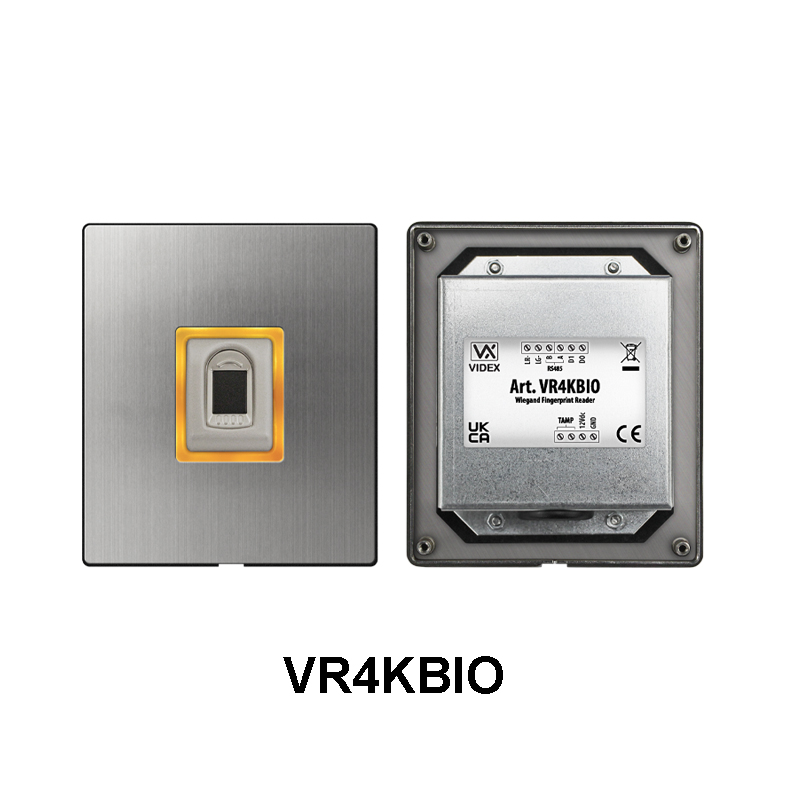

- VR4KBIO – Vandal resistant 4000 series biometric fingerprint reader with Wiegand output for the Portal Plus system
