VR4K Button Modules
The 4000 series vandal resistant button expansion modules are used in conjunction with the audio and video modules to achieve the required number of call buttons for a system.
Six button module variations are available from 4 buttons up to to 9 buttons with each button having two connection terminals. The button modules can be engraved with a flat number or name.
Like the rest of the VR4K series modules the button modules are manufactured from 12 gauge, 316 grade vertically brushed stainless steel and are compatible with the full range of 4000 series surface and flush back boxes.
An option for high contrasting yellow bezel buttons are also available.
Features
- 12 gauge, 316 grade brushed stainless steel fascia
- IK09 impact protect and IP55 ingress protection ratings
- Buttons can be engraved with a flat number or name
- 4 button modules up to 9 button modules available
- Buttons available with high contrast yellow bezel
- Module material: 12 gauge, 316 grade vertically brushed stainless steel front fascia
- Module protections: IK09 impact protection, IP55 ingress protection
- Module compatibility: Can be used with the following VR4K audio speaker modules – VR4KAM, VR4KAMK, VR4KAM2W and VR4KGSM modules
- No. of buttons: 4 buttons up to 9 buttons
- Yellow bezel button option: Yes
- Module dimensions (mm): 103 (W) x 120 (L) x 28 (D)

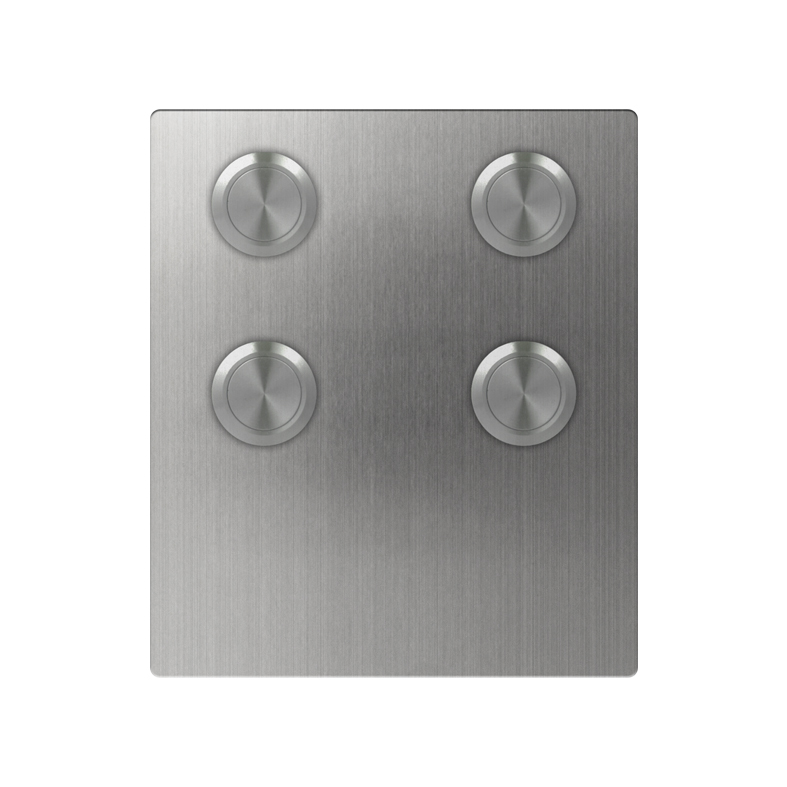

- VR4KBM-4 – 4 button module

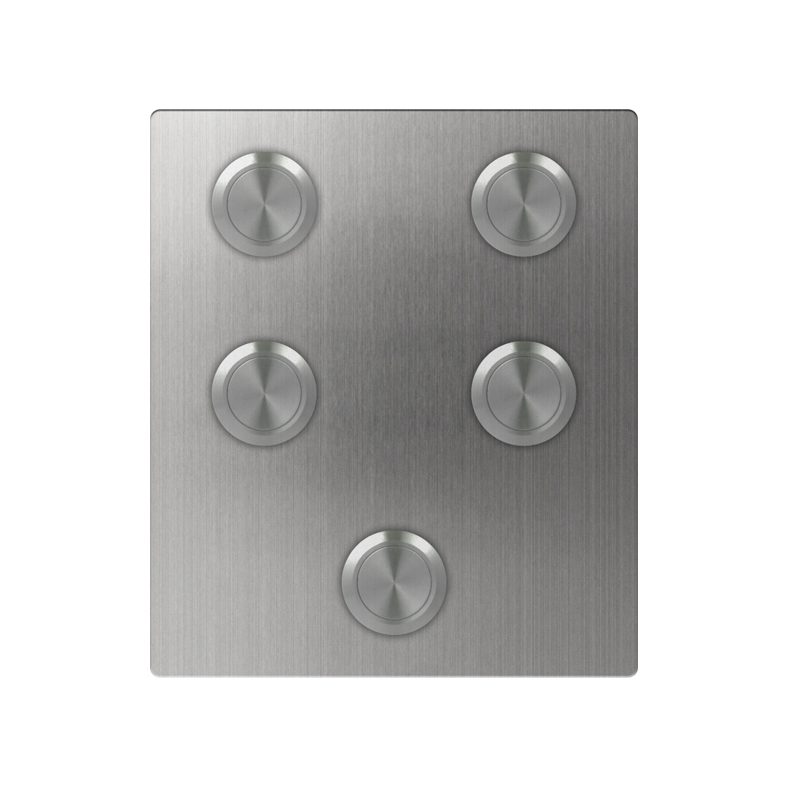

- VR4KBM-5 – 5 button module

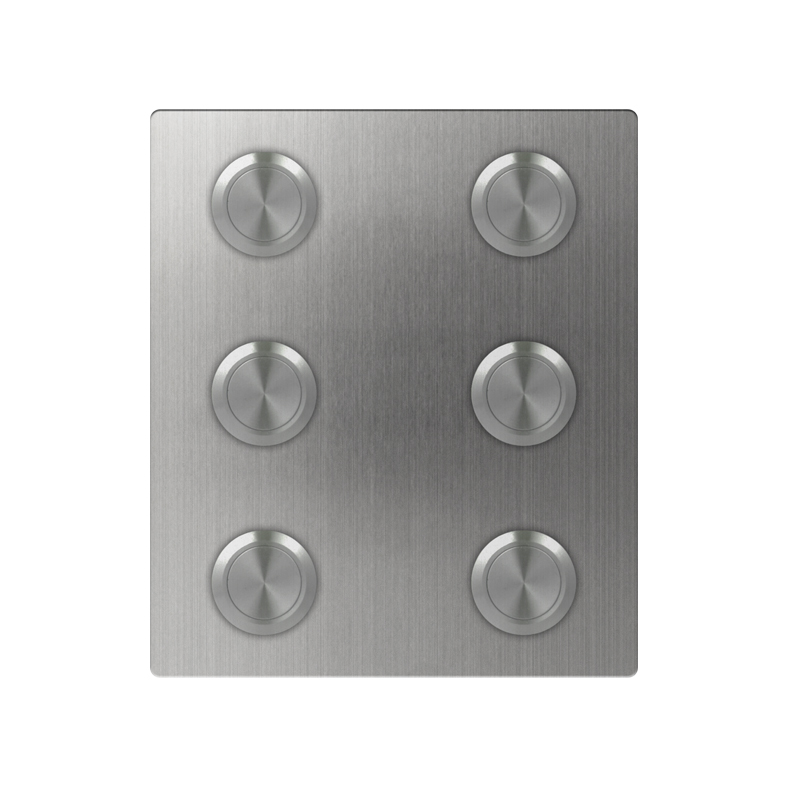

- VR4KBM-6 – 6 button module

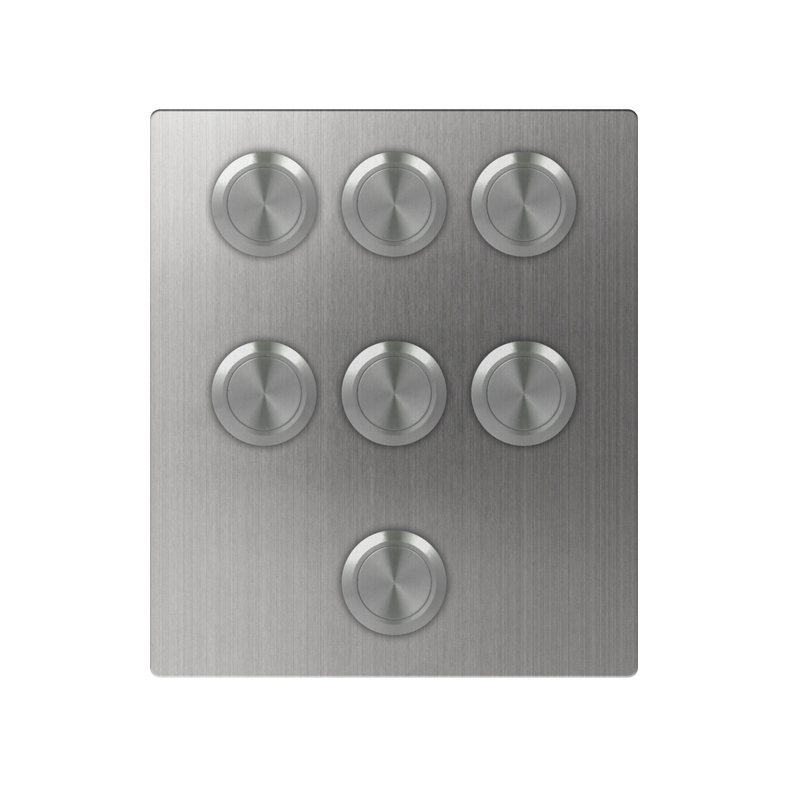

- VR4KBM-7 – 7 button module

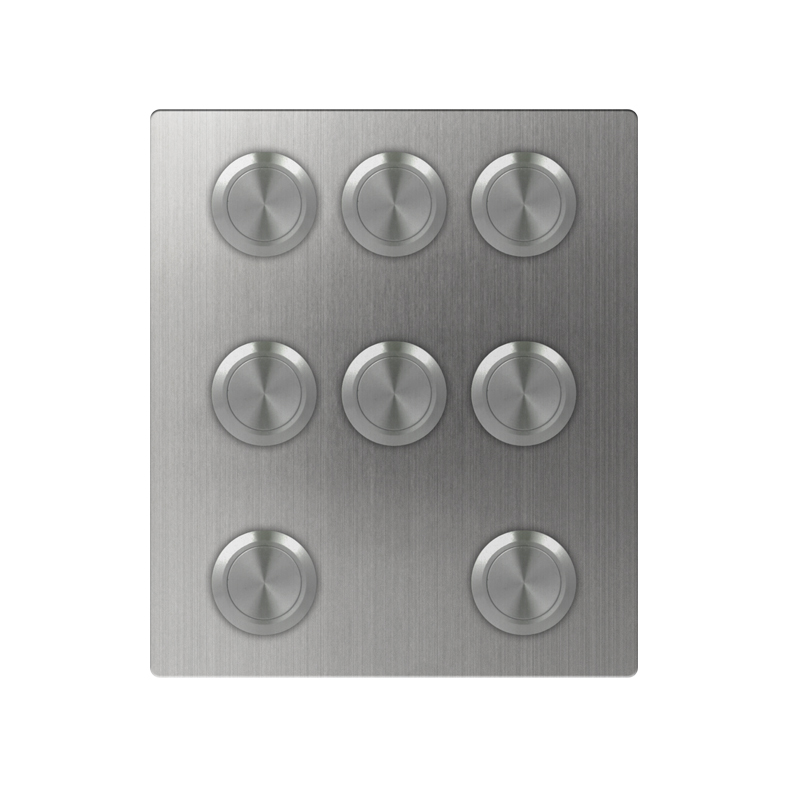

- VR4KBM-8 – 8 button module
- VR4KBM-9 – 9 button module
- VR4KBM-4//Y – 4 button module c/w yellow bezel button

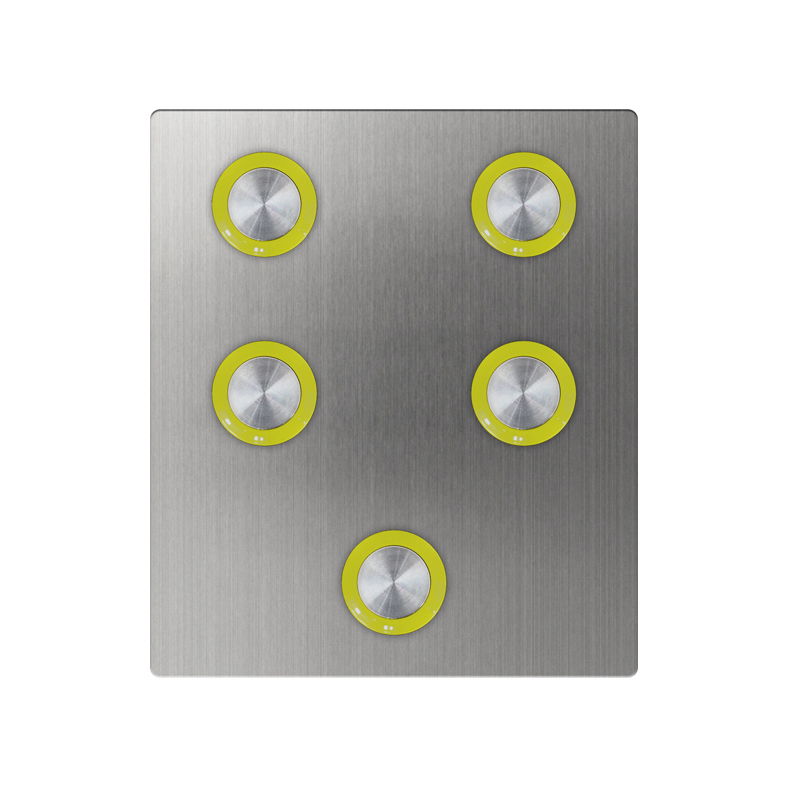

- VR4KBM-5/Y – 5 button module c/w yellow bezel button
- VR4KBM-6/Y – 6 button module c/w yellow bezel button

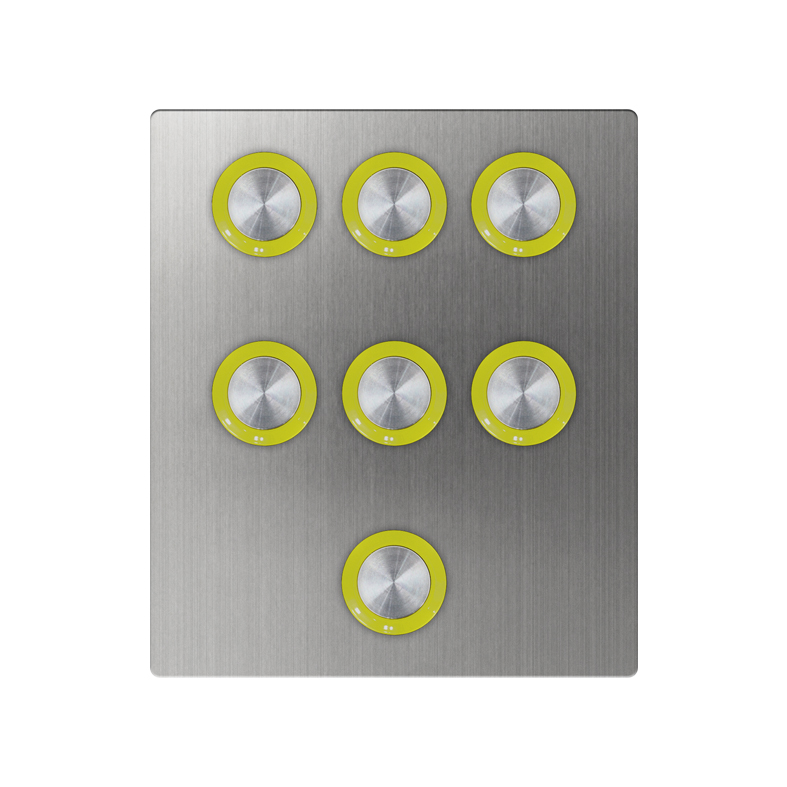

- VR4KBM-7/Y – 7 button module c/w yellow bezel button

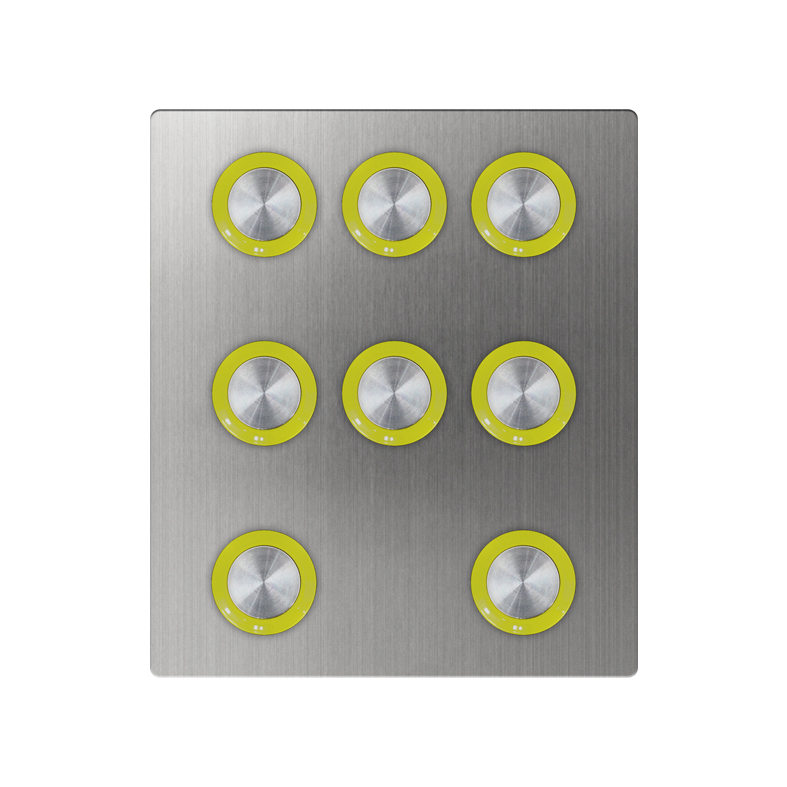

- VR4KBM-8/Y – 8 button module c/w yellow bezel button
- VR4KBM-9/Y – 9 button module c/w yellow bezelbutton
