VR4K Information & Blanking Modules
VR4K Series accessory modules include:

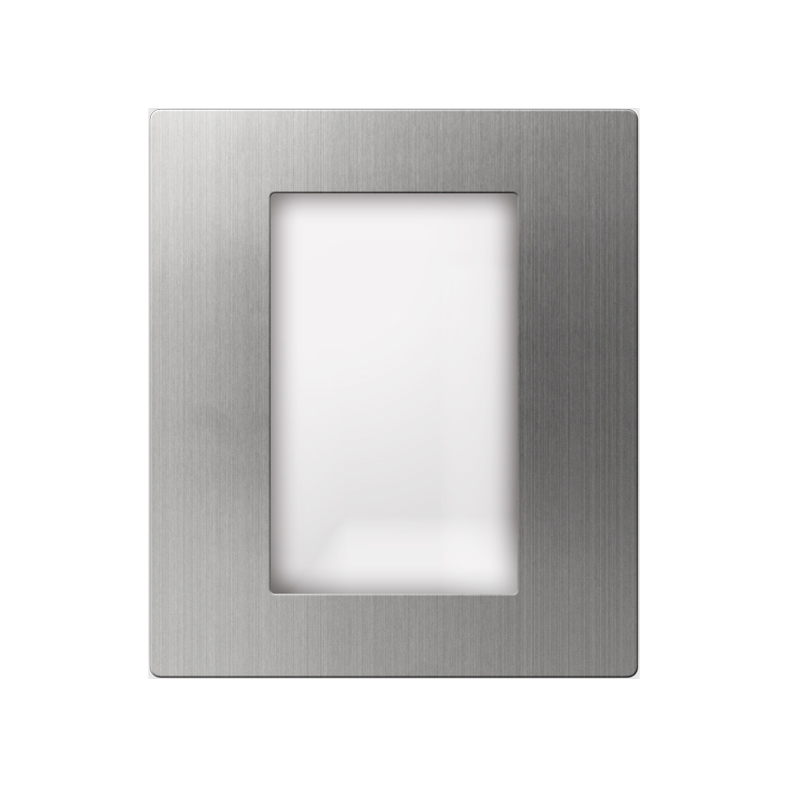

VR4KIFM – Information module for the VR4K series. The information module includes a transparent polycarbonate display window: 52 (W) x 84 (L) mm, 1x white card insert: 62 (W) x 100 (L) mm, which can be customised to provide information to visitors e.g. company name and/or logo, instructions, street name or number etc.

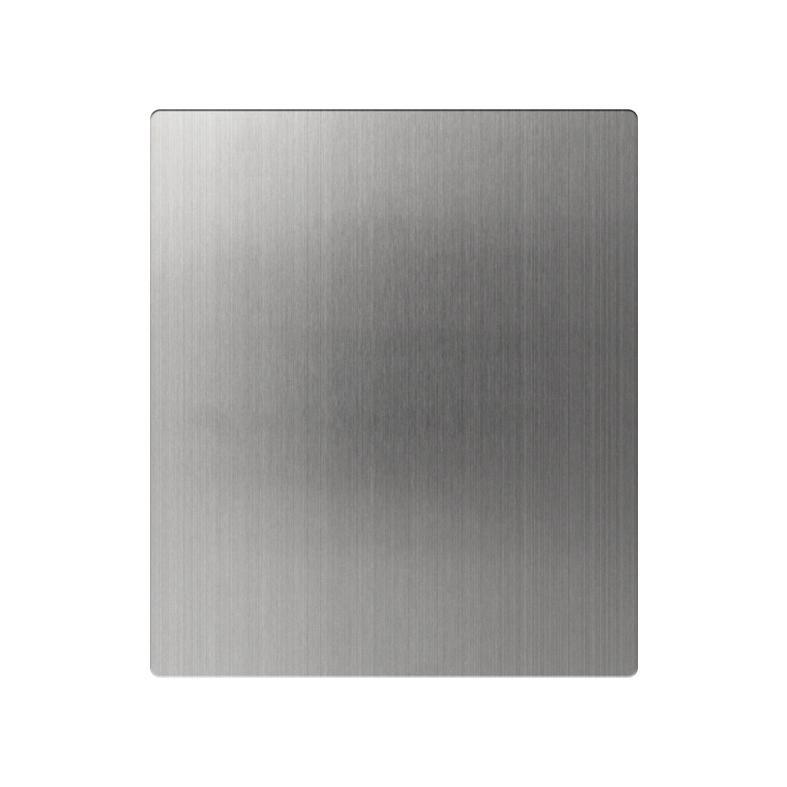

VR4KBLM – Blanking module for the VR4K series. The blanking module is used to occupy the space of a single VR4K series module when the audio or video system is being left for future expansion. It can also be used to complete the overall make up of an outdoor station when there is and even number of modules required.
They are a robust modular design that are compatible with the popular 4000 Series surface and flush back boxes.
Features
- 12 gauge, 316 grade brushed stainless steel fascia
- IK07 impact protect and IP65 ingress protection ratings
- Information module can be used to display user operating instructions or company logo
- Blanking module used to fill a spare module space for future system expansion
- Modules compatible with the full range of 4000 series surface and flush back boxes
VR4KIFM:
- Material: 12 gauge, 316 grade vertically brushed stainless steel front fascia
- Transparent window: Polycarbonate window dimensions (mm): 52 (W) x 84 (L)
- Back light illumination: Yes, back-lit blue LED
- Power input & current: 12Vdc, 30mA (for back light illumination)
- Module protections: IK09 impact protection, IP55 ingress protection
- Module dimensions (mm): 103 (W) x 120 (L) x 18 (D)
VR4KBLM:
- Material: 12 gauge, 316 grade vertically brushed stainless steel front fascia
- Module protections: IK09 impact protection, IP55 ingress protection
- Module dimensions (mm): 103 (W) x 120 (L) x 18 (D)
- VR4KIFM – Vandal resistant 4000 series information module
- VR4KBLM – Vandal resistant 4000 series blanking module
